LMB24-SR.1 | Damper Actuator | 45 in-lb | Non-Spg Rtn | 24V | Modulating | 24 Pack | Belimo
Damper Actuator, 45 in-lb [5 Nm], Non fail-safe, AC/DC 24 V, 2...10 V, modulating Multipack 24 pcs.

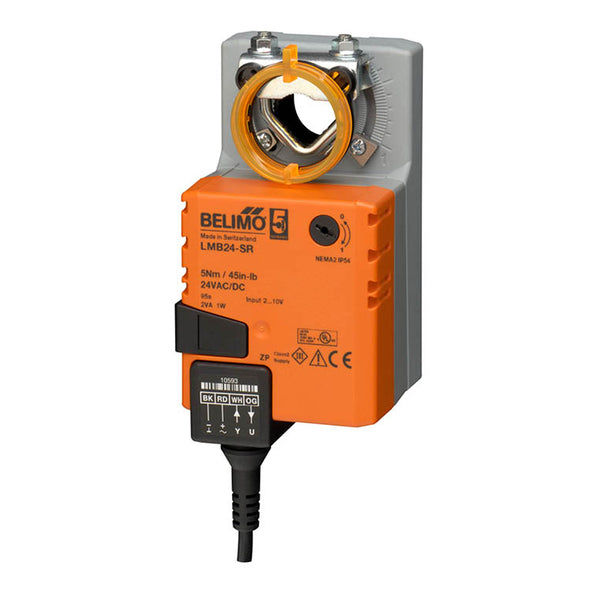

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LMB24-SR.1
Documents and manuals
Belimo LMB24-SR.1 Documents
Overview
Details for LMB24-SR.1
Damper Actuator | 45 in-lb | Non-Spg Rtn | 24V | Modulating | 24 Pack
For proportional modulation of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft from 1/4" up to 5/8" in diameter by means of its universal clamp. Shafts up to 3/4" diameter can be accommodated by an accessory clamp. The actuator operates in response to a 2...10 V, or with the addition of a 500 Ω resistor, a 4...20 mA control input from an electronic controller or positioner. A 2...10 V feedback signal is provided for position indication or masterslave applications.Specifications
- Actuator Type
- Non fail-safe
- Angle of Rotation
- 95
- Control Type
- DC 2...10 V
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Holding)
- 0.4 W
- Power Consumption (Running)
- 1.5 W
- Running Time (Motor)
- 95 s / 90B0
- Safety Function
- NO
- Torque
- 45 in-lb [5 Nm]
- Voltage AC/DC
- AC/DC 24 V
