GKB24-SR | Damper Actuator | 360 in-lb | Electronic FS | 24V | Modulating | Belimo

Damper Actuator, 360 in-lb [40 Nm], Electronic fail-safe, AC/DC 24 V, 2...10 V, modulating

Belimo | GKB24-SR

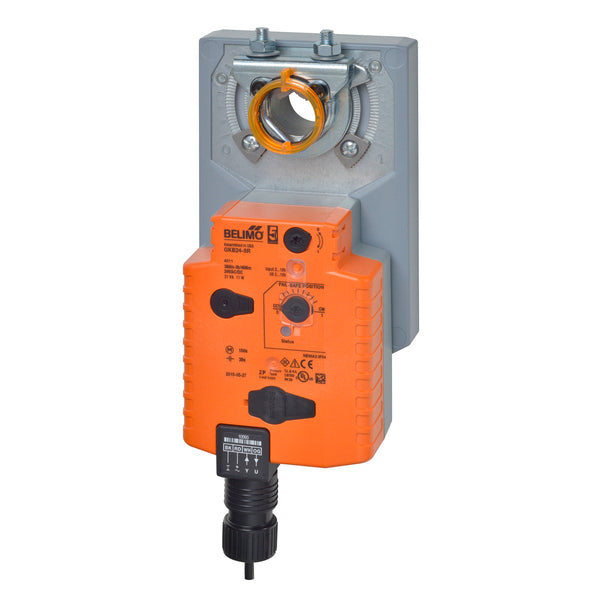

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GKB24-SR

Documents and manuals

Belimo GKB24-SR Documents

Overview

Details for GKB24-SR

Damper Actuator | 360 in-lb | Electronic FS | 24V | Modulating

For fail-safe, modulating control of dampers in HVAC systems. Actuator sizing should be done inaccordance with the damper manufacturer’s specifications. The actuator is mounted directly to a dampershaft up to 1.05" in diameter by means of its universal clamp. A crank arm and several mounting bracketsare available for applications where the actuator cannot be direct coupled to the damper shaft. Theactuator operates in response to a DC 2...10 Vor, with the addition of a 500Ω resistor, a 4...20 mA controlinput from an electronic controller or positioner. A DC 2...10 V feedback signal is provided for positionindication. A common installation technique for control of multi-section dampers is to use the U5 position feedback ofone actuator (Master) to control multiple actuators (Slaves). Belimo refers to this as Master/Slave control.The only requirement is that the actuators are installed on MECHANICALLY SEPARATE damper shafts.

Specifications

Actuator Type
Electrical fail-safe
Angle of Rotation
95
Control Type
DC 2...10 V
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Direction of Rotation (Fail-Safe)
Reversible with switch
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Holding)
3 W
Power Consumption (Running)
11 W
Running Time (Fail-safe)
<35 s
Running Time (Motor)
150 s / 90B0
Safety Function
YES
Torque
360 in-lb [40 Nm]
Voltage AC/DC
AC/DC 24 V
