Get Special Pricing!
G780S-250+AFX24-MFT95-X1 | Globe Valve | 3" | 3 Way | 91 Cv | w/ Spg Rtn | 24V | MFT | Belimo (OBSOLETE)
Globe Valve (GV), 3", 3-way, ANSI Class 250, Cv 85 |Configurable Valve Actuator, Spring return, AC/DC 24 V, 0...135 Ω, MFT/programmable

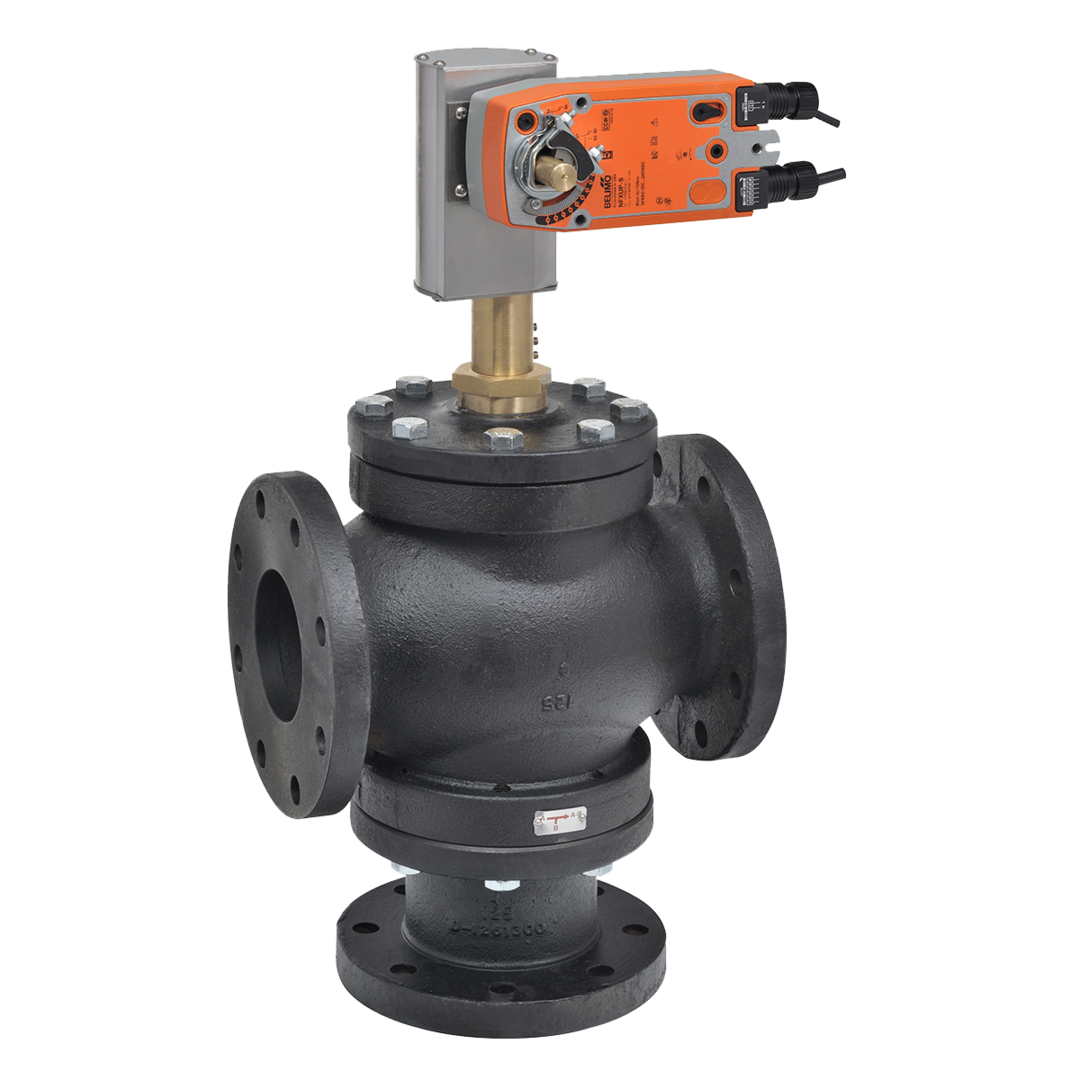

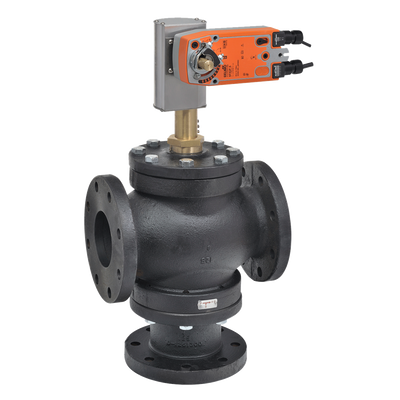

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to G780S-250+AFX24-MFT95-X1
Documents and manuals
Belimo G780S-250+AFX24-MFT95-X1 Documents
Overview
Details for G780S-250+AFX24-MFT95-X1
DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS
Globe Valve | 3" | 3 Way | 91 Cv | w/ Spg Rtn | 24V | MFT
Specifications
- Valve specifications
- Angle of Rotation
- 95
- ANSI Class
- 250
- Controllable Flow Range
- Stem up - open B b AB
- Cv
- 85
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 3-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 3" [80]
- Actuator specifications
- Actuator Type
- Spring return
- Control Type
- 0...135 N)
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- 5 mm hex crank (3/16" Allen) supplied
- Power Consumption (Holding)
- 3 W
- Power Consumption (Running)
- 7.5 W
- Running Time (Fail-safe)
- <20 s
- Running Time (Motor)
- 150 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
