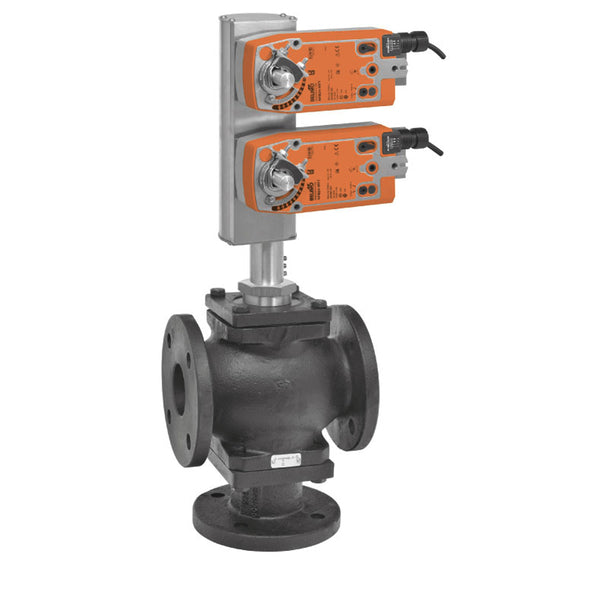

G765S-250+2*AFX24-MFT-X1 | Globe Valve | 2.5" | 3 Way | 68 Cv | w/ Spg Rtn | 24V | MFT | Belimo
Globe Valve (GV), 2 1/2", 3-way, ANSI Class 250, Cv 68 |Valve Actuator, Spring return, AC/DC 24 V, 2...10 V, MFT/programmable
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to G765S-250+2*AFX24-MFT-X1
Documents and manuals
Belimo G765S-250+2*AFX24-MFT-X1 Documents
Overview
Details for G765S-250+2*AFX24-MFT-X1
Globe Valve | 2.5" | 3 Way | 68 Cv | w/ Spg Rtn | 24V | MFT
This valve is typically used in large air handling units on heating or cooling coils. This valve is suitable for use in a hydronic system with variable flow. Valves are designed for ANSI 250 piping systemsSpecifications
- Valve specifications
- Angle of Rotation
- 95
- ANSI Class
- 250
- Controllable Flow Range
- Stem up - open B b AB
- Cv
- 68
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 3-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 2.5" [65]
- Actuator specifications
- Actuator Type
- Spring return
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- 5 mm hex crank (3/16" Allen) supplied
- Power Consumption (Holding)
- 3 W
- Power Consumption (Running)
- 7.5 W
- Running Time (Fail-safe)
- <20 s
- Running Time (Motor)
- 150 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
