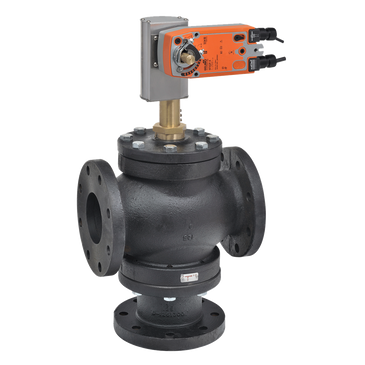

G765D+AFX24-MFT-X1 | Globe Valve | 2.5" | 3 Way | 68 Cv | w/ Spg Rtn | 24V | MFT | Belimo
Globe Valve (GV), 2 1/2", 3-way, ANSI Class 125, Cv 68 |Configurable Valve Actuator, Spring return, AC/DC 24 V, 2...10 V, MFT/programmable
Documents and manuals
Belimo G765D+AFX24-MFT-X1 Documents
Overview
Details for G765D+AFX24-MFT-X1

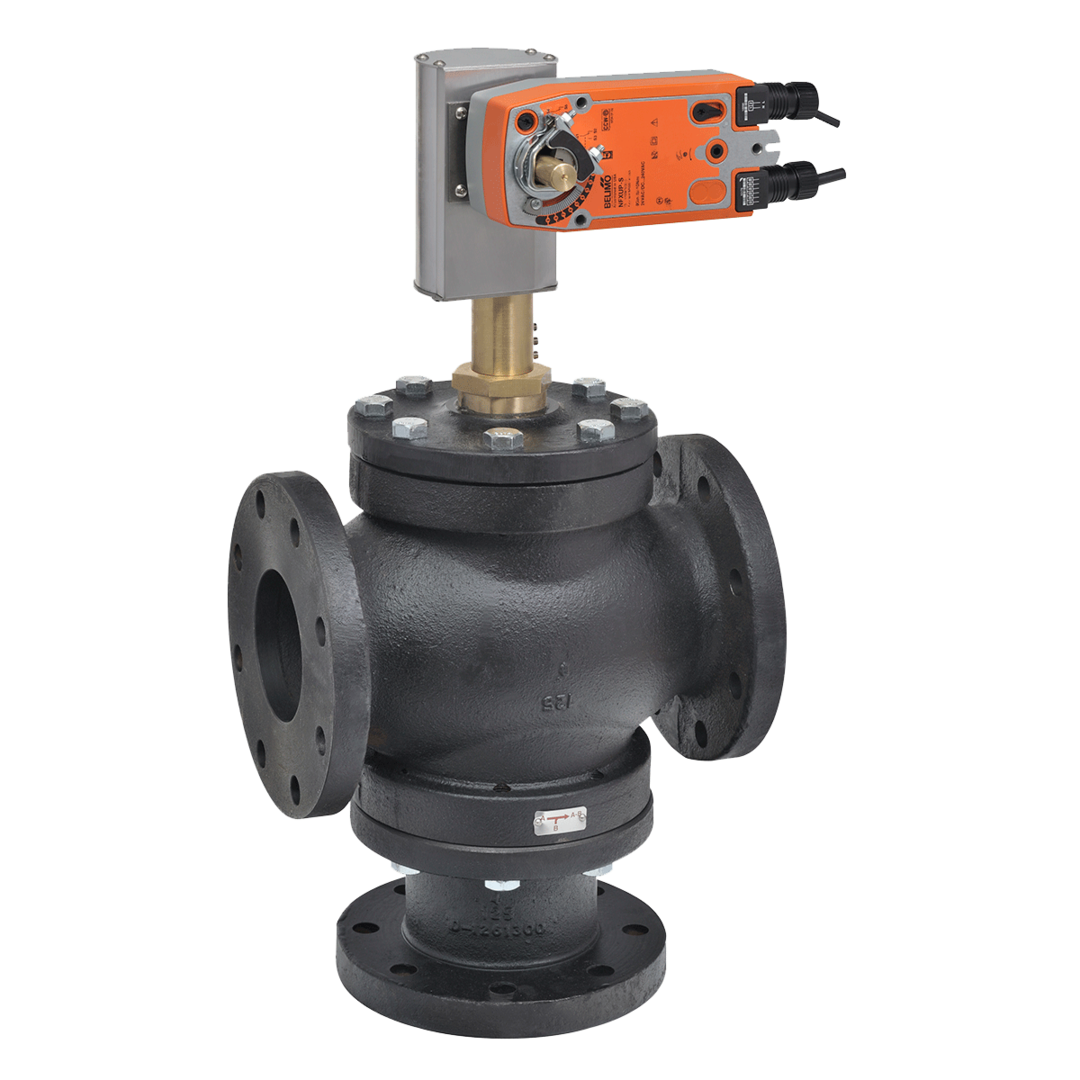

Globe Valve | 2.5" | 3 Way | 68 Cv | w/ Spg Rtn | 24V | MFT
Globe Valve | 2.5" | 3 Way | 68 Cv | w/ Spg Rtn | 24V | MFT
FEATURES
- Revenue Grade measurements
- High resolution backlit LCD display provides clear readings at a distance...reduces the risk of misinterpretation of the data. Backlighting can be disabled if desired
- H8163 provides a pulse output from 1/10 to 1 pulse per kWh for easy connection to existing control or data acquisition systems
- Provides a phase-loss alarm...protects equipment (H8163)
- With the optional communications board (H81xx-CB), the H81xx can easily be added to a Modbus, BACnet or N2 control system network to report multiple variables including kW, kWh, kVAR, PF, Amps and Volts, providing crucial power information at a reduced installation cost
APPLICATIONS
- Commercial tenant submetering
- Performance contracting
- Allocating costs
- Real-time power monitoring via local display or through control/data acquisition systems
DESCRIPTION
The H81xx Series Energy Meters are easy to install & provide exceptional system accuracy, making them ideal for all submetering applications.
Each meter is factory-matched with one to three split-core CTs. The meter/CT pairs are system-calibrated to provide excellent total system accuracies of 1% from 2% to 100% of the amperage rating of the CTs (e.g., 2-100 amps with 100 amp CTs).Matching serial numbers assure that the meter and CT were calibrated together (matching does not apply if using 100A CTs).
The H81xx is easy to install. The split-core CTs virtually eliminate the need to remove electrical conductors, reducing installation time. The meter is also capable of detecting and correcting phase reversal, eliminating the need for concern about CT load orientation. The convenient color coding of the CTs and voltage leads make correct connection simple.
Resources
Specifications
- Valve specifications
- Angle of Rotation
- 95
- ANSI Class
- 125
- Controllable Flow Range
- Stem up - open AB b B
- Cv
- 68
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 3-way
- Pressure Independent
- NO
- Trim
- Bronze
- Valve Size
- 2.5" [65]
- Actuator specifications
- Actuator Type
- Spring return
- Control Type
- MFT/Programmable
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- 5 mm hex crank (3/16" Allen) supplied
- Power Consumption (Holding)
- 3 W
- Power Consumption (Running)
- 7.5 W
- Running Time (Fail-safe)
- <20 s
- Running Time (Motor)
- 150 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
