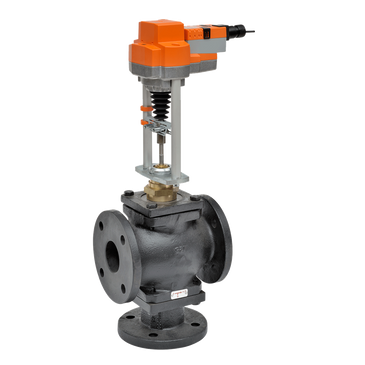

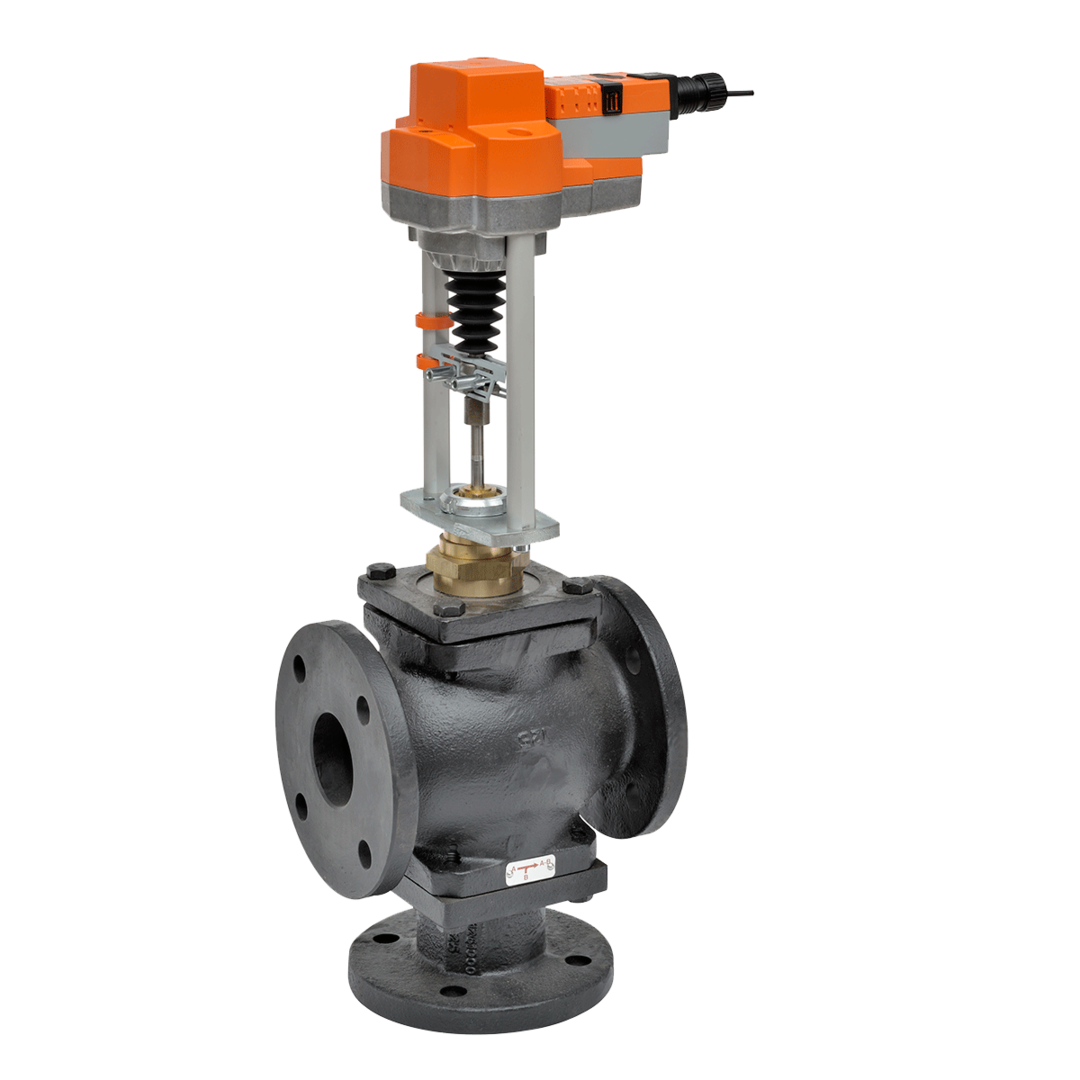

G7100S+EVB24-SR | Globe Valve | 4" | 3 Way | 190 Cv | w/ Non-Spg | 24V | 2-10V | Belimo

Globe Valve (GV), 4", 3-way, ANSI Class 125, Cv 190 |Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, modulating

Belimo | G7100S+EVB24-SR
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to G7100S+EVB24-SR

Documents and manuals

Belimo G7100S+EVB24-SR Documents

Overview

Details for G7100S+EVB24-SR

Globe Valve | 4" | 3 Way | 190 Cv | w/ Non-Spg | 24V | 2-10V

This valve is typically used in large Air Handling Units (AHU) on heating or cooling coils. This valve is suitable for use in a hydronic system with variable flow.

Specifications

Valve specifications
ANSI Class
125
Controllable Flow Range
Stem up - open B b AB
Cv
190
End Fitting
Flange
Fluid
Chilled or hot water up to 60% glycol
Pattern
3-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
4" [100]
Actuator specifications
Actuator Type
Non fail-safe
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Force
2500 N [560 lbf]
Manual Override
5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding)
1.5 W
Power Consumption (Running)
5 W
Running Time (Motor)
90 s /
Stroke
2" [50 mm]
Voltage AC/DC
AC/DC 24 V
