G680LCS+EVCX24-MFT | Globe Valve | 3" | 2 Way | 90Cv | w/Non-Spring Return | 24V | MFT | Belimo

Globe Valve (GV), 3", 2-way, ANSI Class 125, Cv 90 |Configurable Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable

Belimo | G680LCS+EVCX24-MFT

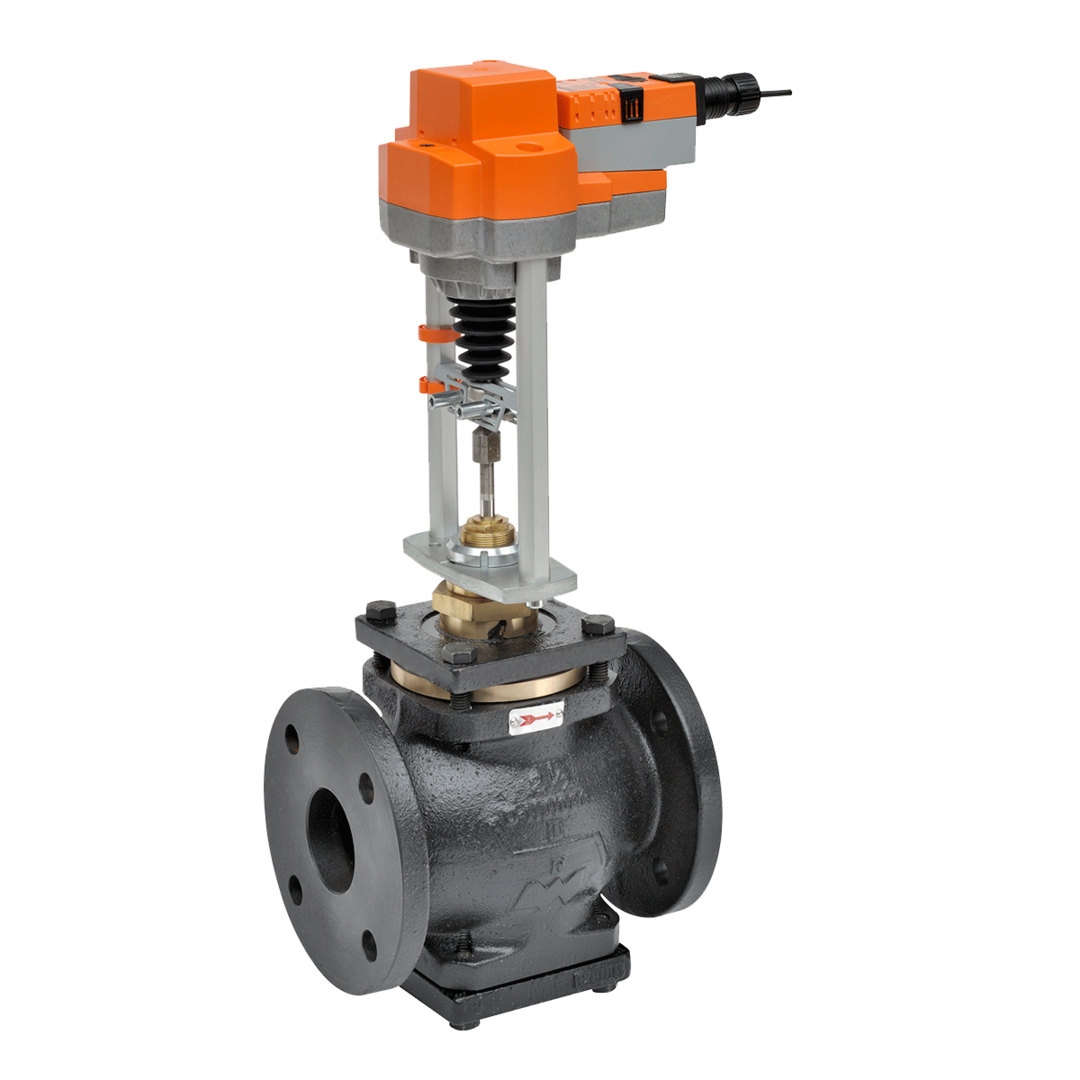

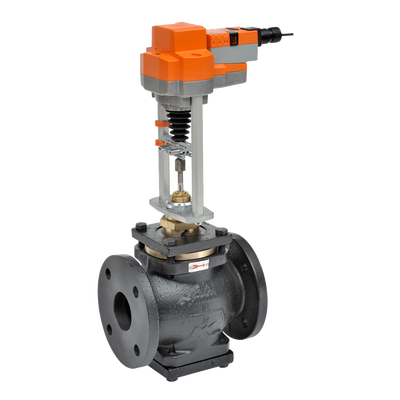

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to G680LCS+EVCX24-MFT

Documents and manuals

Belimo G680LCS+EVCX24-MFT Documents

Overview

Details for G680LCS+EVCX24-MFT

Globe Valve | 3" | 2 Way | 90Cv | w/Non-Spring Return | 24V | MFT

Specifications

Valve specifications
ANSI Class
125
Controllable Flow Range
Stem up - open A b AB
Cv
90
End Fitting
Flange
Fluid
Chilled or hot water up to 60% glycol steam
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
3" [80]
Actuator specifications
Actuator Type
Non fail-safe
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Force
2500 N [560 lbf]
Manual Override
5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding)
1.5 W
Power Consumption (Running)
5 W
Running Time (Motor)
35 s /
Stroke
2" [50 mm]
Voltage AC/DC
AC/DC 24 V
