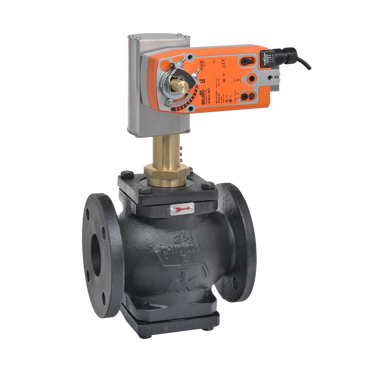

G680CS-250+AFX24-MFT-X1 | Globe Valve | 3" | 2 Way | 90 Cv | w/ Spg Rtn | 24V | MFT | Belimo
Globe Valve (GV), 3", 2-way, ANSI Class 250, Cv 90 |Configurable Valve Actuator, Spring return, AC/DC 24 V, 2...10 V, MFT/programmable
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to G680CS-250+AFX24-MFT-X1
Documents and manuals
Belimo G680CS-250+AFX24-MFT-X1 Documents
Overview
Details for G680CS-250+AFX24-MFT-X1
Globe Valve | 3" | 2 Way | 90 Cv | w/ Spg Rtn | 24V | MFT
Applications
This valve is typically used in large air handling units on heating or cooling coils. This valve is suitable for use in a hydronic system with variable flow. Bronze or stainless steel trim valves can be used for steam applications, depending on actuator and close-off combination
Specifications
- Valve specifications
- Angle of Rotation
- 95
- ANSI Class
- 250
- Controllable Flow Range
- Stem up - open A b AB
- Cv
- 90
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol steam
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 3" [80]
- Actuator specifications
- Actuator Type
- Spring return
- Control Type
- MFT/Programmable
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- 5 mm hex crank (3/16" Allen) supplied
- Power Consumption (Holding)
- 3 W
- Power Consumption (Running)
- 7.5 W
- Running Time (Fail-safe)
- <20 s
- Running Time (Motor)
- 150 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
