G665C-250+AFBUP-S-X1 | Globe Valve | 2.5" | 2 Way | 65Cv | w/ Spring Return | 24 to 240V (UP) | On/Off | SW | Belimo
Globe Valve (GV), 2 1/2", 2-way, ANSI Class 250, Cv 65 |Valve Actuator, Spring return, AC 24...240 V / DC 24...125 V, On/Off, 2 x SPDT

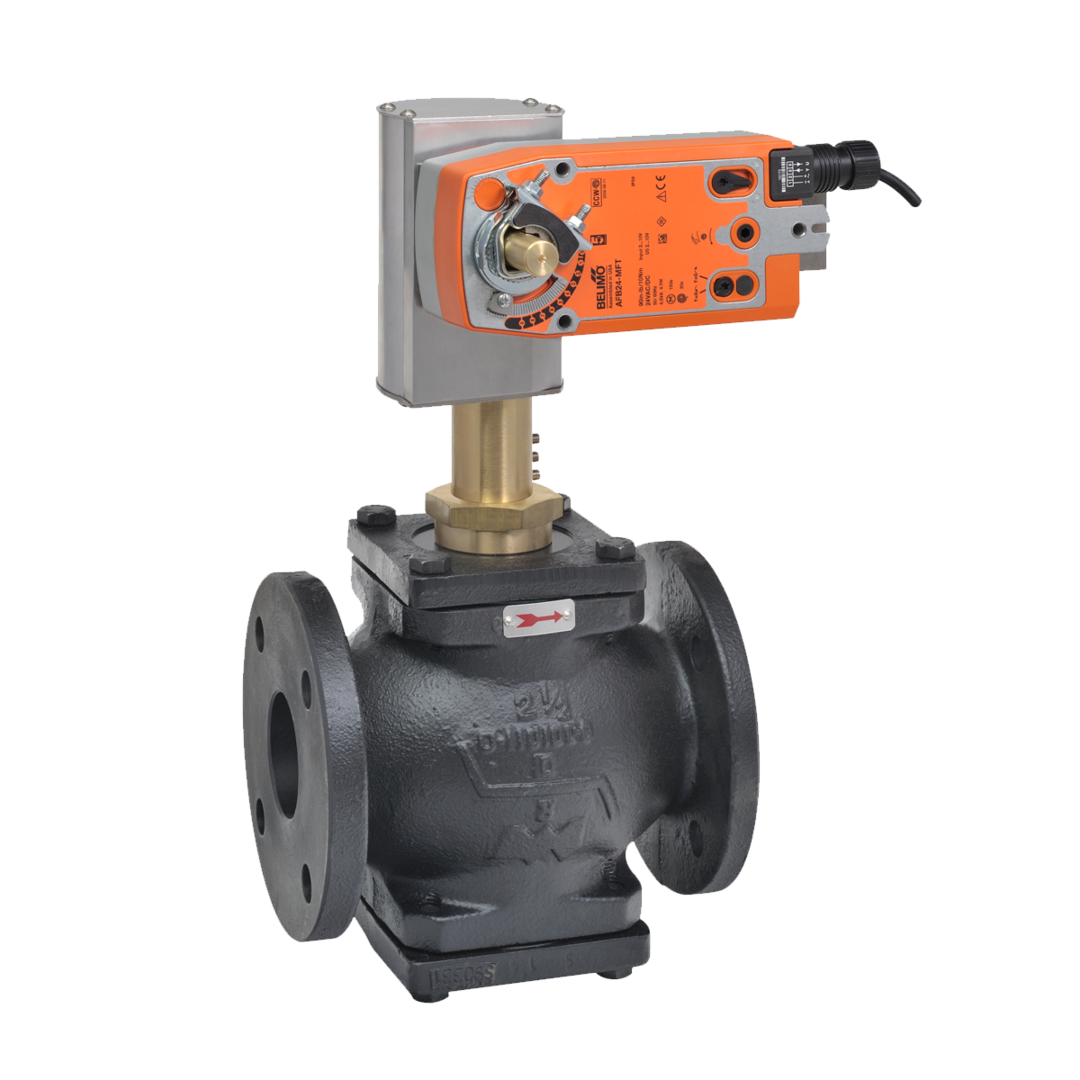

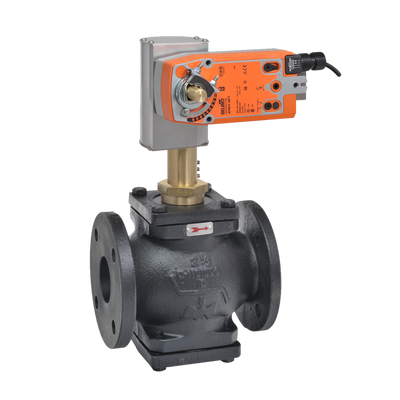

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to G665C-250+AFBUP-S-X1
Documents and manuals
Belimo G665C-250+AFBUP-S-X1 Documents
Overview
Details for G665C-250+AFBUP-S-X1
Globe Valve | 2.5" | 2 Way | 65Cv | w/ Spring Return | 24 to 240V (UP) | On/Off | SW
Specifications
- Valve specifications
- Angle of Rotation
- 95
- ANSI Class
- 250
- Controllable Flow Range
- Stem up - open A b AB
- Cv
- 65
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol steam
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Bronze
- Valve Size
- 2.5" [65]
- Actuator specifications
- Actuator Type
- Spring return
- Auxiliary Switches
- 2 x SPDT
- Control Type
- On/Off
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- 5 mm hex crank (3/16" Allen) supplied
- Power Consumption (Holding)
- 3.5 W
- Power Consumption (Running)
- 7 W
- Running Time (Fail-safe)
- <20 s
- Running Time (Motor)
- 75 s / 90B0
- Voltage AC/DC
- AC 24...240 V / DC 24...125 V
