G6125LCS+EVX120-3 | Globe Valve | 5" | 2 Way | 263 Cv | w/ Non-Spg | 120V | Floating Point | Belimo
Globe Valve (GV), 5", 2-way, ANSI Class 125, Cv 263 |Valve Actuator, Non fail-safe, AC 100...240 V, On/Off, Floating point

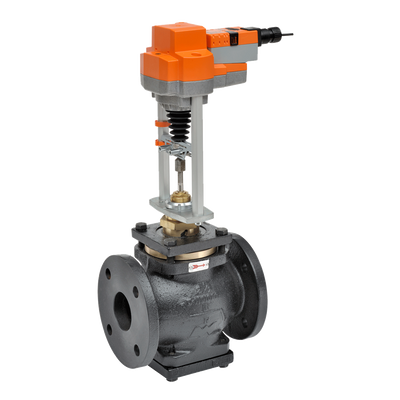

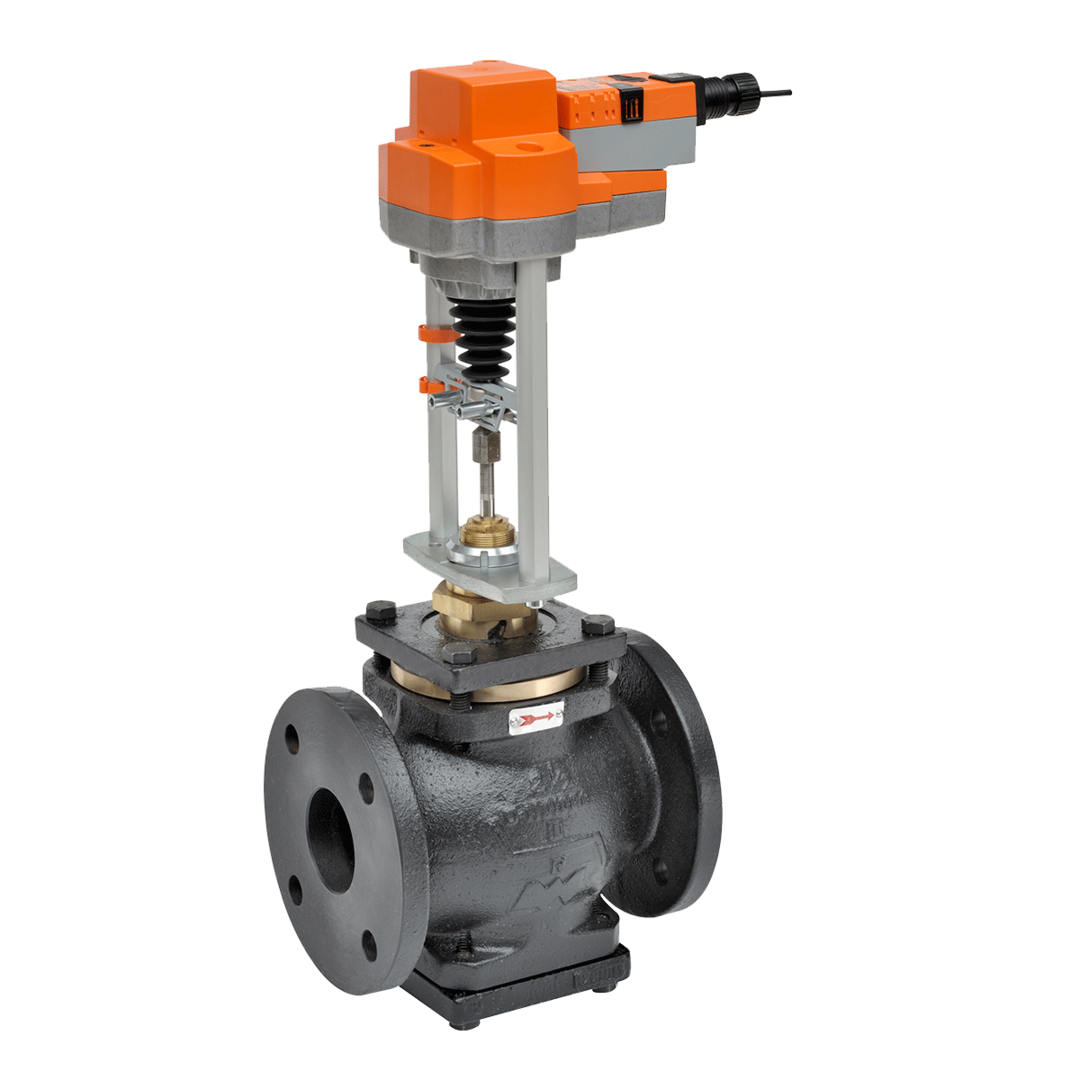

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to G6125LCS+EVX120-3
Documents and manuals
Belimo G6125LCS+EVX120-3 Documents
Overview
Details for G6125LCS+EVX120-3
Globe Valve | 5" | 2 Way | 263 Cv | w/ Non-Spg | 120V | Floating Point
Specifications
- Valve specifications
- ANSI Class
- 125
- Controllable Flow Range
- Stem up - open A b AB
- Cv
- 263
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol steam
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 5" [125]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Force
- 2500 N [560 lbf]
- Manual Override
- 5 mm hex crank (3/16" Allen) supplied
- Power Consumption (Holding)
- 1.5 W
- Power Consumption (Running)
- 5 W
- Running Time (Motor)
- 90 s /
- Stroke
- 2" [50 mm]
- Voltage AC/DC
- AC 100...240 V
