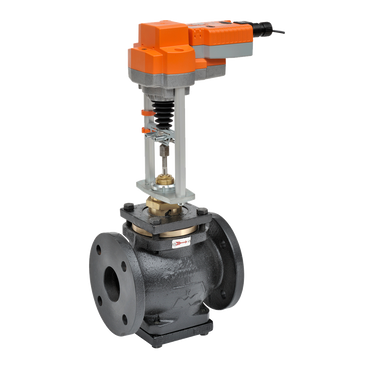

G6100C+AVKB24-3 | Globe Valve | 4" | 2 Way | 170 Cv | w/ Electronic FS | 24V | Floating | Belimo
Globe Valve (GV), 4", 2-way, ANSI Class 125, Cv 170 |Valve Actuator, Electronic fail-safe, AC 24 V, On/Off, Floating point
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to G6100C+AVKB24-3
Documents and manuals
Belimo G6100C+AVKB24-3 Documents
Overview
Details for G6100C+AVKB24-3
Globe Valve | 4" | 2 Way | 170 Cv | w/ Electronic FS | 24V | Floating
Specifications
- Valve specifications
- ANSI Class
- 125
- Controllable Flow Range
- Stem up - open A b AB
- Cv
- 170
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol steam
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Bronze
- Valve Size
- 4" [100]
- Actuator specifications
- Actuator Type
- Electrical fail-safe
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Force
- 2000 N [450 lbf]
- Manual Override
- 5 mm hex crank (3/16" Allen) supplied
- Power Consumption (Holding)
- 2 W
- Power Consumption (Running)
- 5 W
- Running Time (Fail-safe)
- <35 s
- Running Time (Motor)
- 90 s /
- Stroke
- 1.25" [32 mm]
- Voltage AC/DC
- AC 24 V
