G6100C-250+EVX24-SR | Globe Valve | 4" | 2 Way | 170 Cv | w/ Non-Spring | 24V | Modulating | Belimo
Globe Valve (GV), 4", 2-way, ANSI Class 250, Cv 170 |Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, modulating

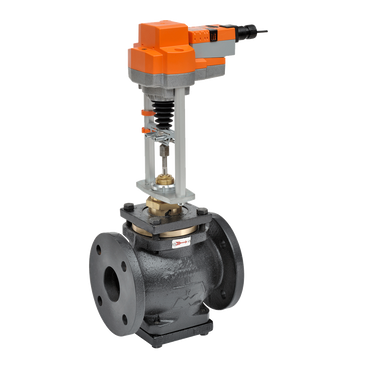

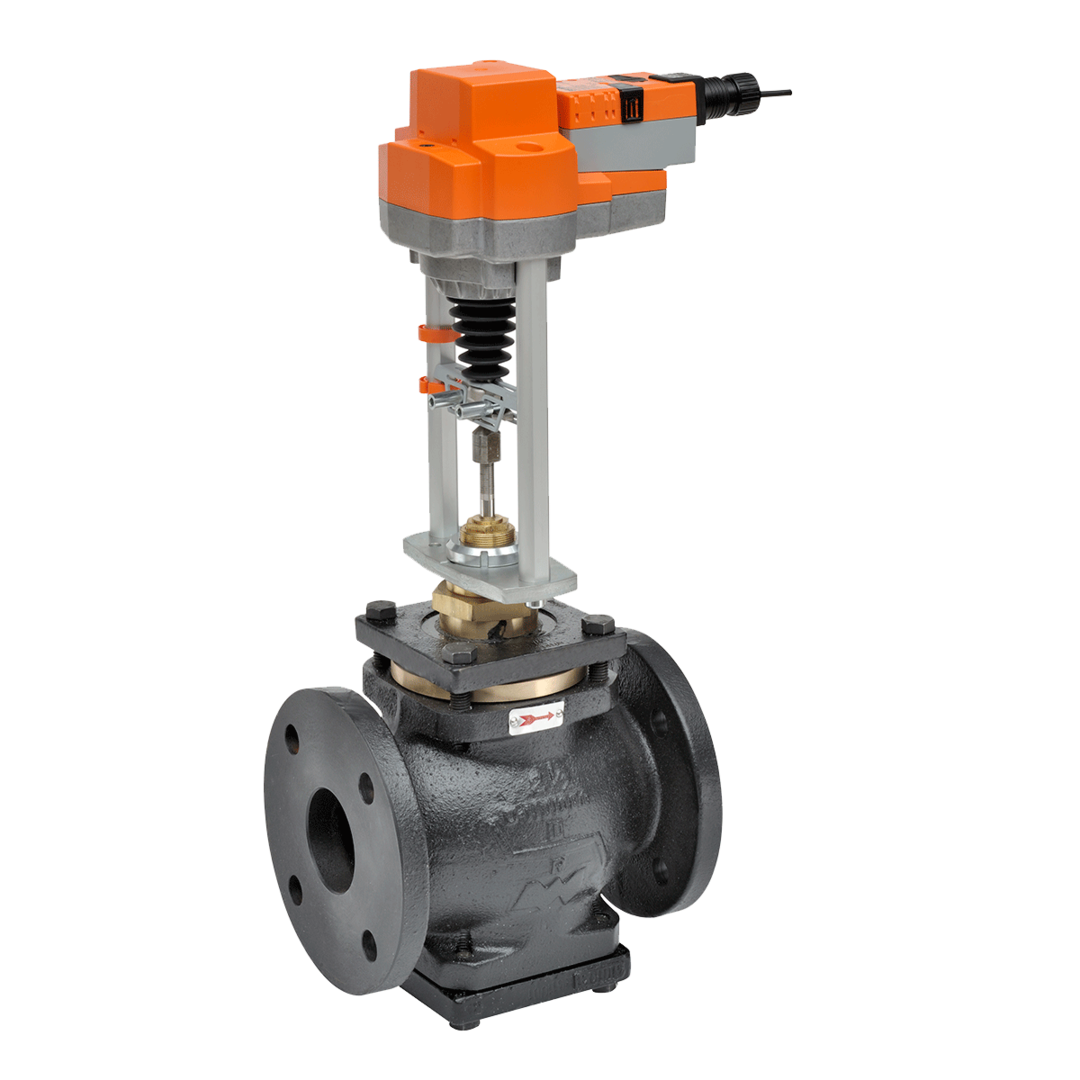

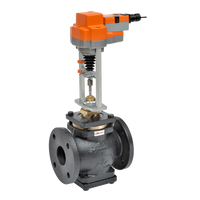

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to G6100C-250+EVX24-SR
Documents and manuals
Belimo G6100C-250+EVX24-SR Documents
Overview
Details for G6100C-250+EVX24-SR
Globe Valve | 4" | 2 Way | 170 Cv | w/ Non-Spring | 24V | Modulating
This valve is typically used in large air handling units on heating or cooling coils. This valve is suitable for use in a hydronic system with variable flow. Bronze or stainless steel trim valves can be used for steam applications, depending on actuator and close-off combination.Specifications
- Valve specifications
- ANSI Class
- 250
- Controllable Flow Range
- Stem up - open A b AB
- Cv
- 170
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol steam
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Bronze
- Valve Size
- 4" [100]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Force
- 2500 N [560 lbf]
- Manual Override
- 5 mm hex crank (3/16" Allen) supplied
- Power Consumption (Holding)
- 1.5 W
- Power Consumption (Running)
- 5 W
- Running Time (Motor)
- 90 s /
- Stroke
- 2" [50 mm]
- Voltage AC/DC
- AC/DC 24 V
