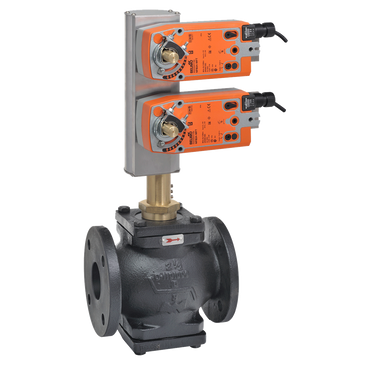

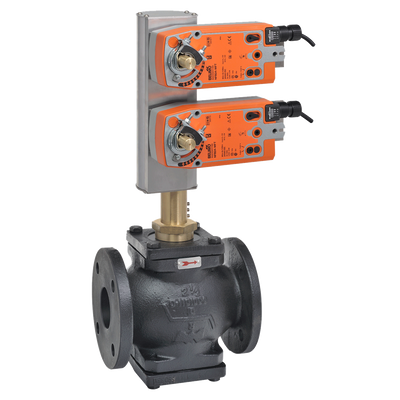

G6100C+2*AFBUP-X1 | Globe Valve | 4" | 2 Way | 170 Cv | w/ Spg Rtn | 24 -240V | On/Off | Belimo

Globe Valve (GV), 4", 2-way, ANSI Class 125, Cv 170 |Valve Actuator, Spring return, AC 24...240 V / DC 24...125 V, On/Off

Belimo | G6100C+2*AFBUP-X1
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to G6100C+2*AFBUP-X1
DocumentsOverview SpecificationsParts & AccessoriesReviews

Documents and manuals

Belimo G6100C+2*AFBUP-X1 Documents

Datasheet Installation Instructions More Info

Overview

Details for G6100C+2*AFBUP-X1

Globe Valve | 4" | 2 Way | 170 Cv | w/ Spg Rtn | 24 -240V | On/Off

This valve is typically used in large air handling units on heating or cooling coils. This valve is suitable for use in a hydronic system with variable flow. Bronze or stainless steel trim valves can be used for steam applications, depending on actuator and close-off combination.

Specifications

Valve specifications
Angle of Rotation
95
ANSI Class
125
Controllable Flow Range
Stem up - open A b AB
Cv
170
End Fitting
Flange
Fluid
Chilled or hot water up to 60% glycol steam
Pattern
2-way
Pressure Independent
NO
Trim
Bronze
Valve Size
4" [100]
Actuator specifications
Actuator Type
Spring return
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding)
3.5 W
Power Consumption (Running)
7 W
Running Time (Fail-safe)
<20 s
Running Time (Motor)
75 s / 90B0
Voltage AC/DC
AC 24...240 V / DC 24...125 V
