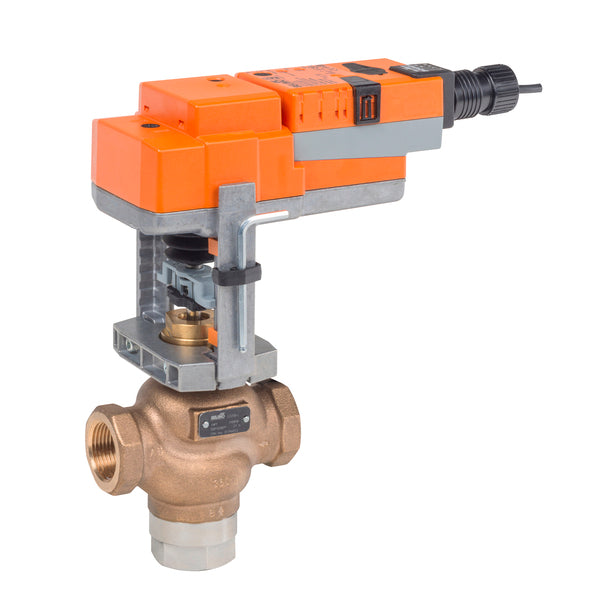

G320B-K+SVB24-3 | Globe Valve | 0.75" | 3 Way | 6.75 Cv | w/ Non-Spring | 24V | Floating | Belimo
Globe Valve (GV), 3/4", 3-way, ANSI Class 250, Cv 6.75 |Valve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to G320B-K+SVB24-3
Documents and manuals
Belimo G320B-K+SVB24-3 Documents
Overview
Details for G320B-K+SVB24-3
Globe Valve | 0.75" | 3 Way | 6.75 Cv | w/ Non-Spring | 24V | Floating
Specifications
- Valve specifications
- ANSI Class
- 250
- Controllable Flow Range
- Stem up - open B b AB
- Cv
- 6.75
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 3-way
- Pressure Independent
- NO
- Trim
- Bronze
- Valve Size
- 0.75" [20]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Force
- 1500 N [340 lbf]
- Manual Override
- 4 mm hex crank (shipped w/actuator)
- Power Consumption (Holding)
- 1.5 W
- Power Consumption (Running)
- 2 W
- Running Time (Motor)
- 90 s /
- Stroke
- 0.75" [19 mm]
- Voltage AC/DC
- AC/DC 24 V
