G250S-N+NFB24-SR-X1 | Globe Valve | 2" | 2 Way | 40 Cv | w/ Spring Return | 24V | Modulating | Belimo

Globe Valve (GV), 2", 2-way, ANSI Class 250, Cv 40 |Valve Actuator, Spring return, AC/DC 24 V, 2...10 V, modulating

Belimo | G250S-N+NFB24-SR-X1

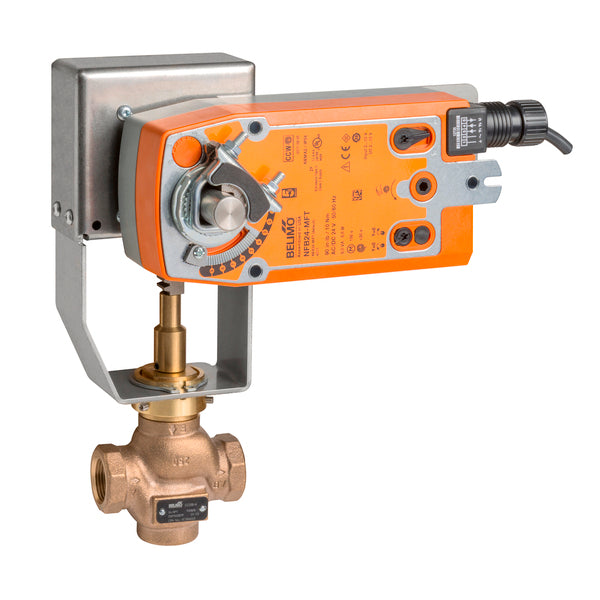

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to G250S-N+NFB24-SR-X1

Documents and manuals

Belimo G250S-N+NFB24-SR-X1 Documents

Overview

Details for G250S-N+NFB24-SR-X1

Globe Valve | 2" | 2 Way | 40 Cv | w/ Spring Return | 24V | Modulating

This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include unit ventilators, VAV box re-heat coils and bypass loops. This valve is suitable for use in hydronic systems with variable flow. Bronze and stainless steel trim valves can be used for steam applications, depending on actuator and close-off combinations.

Specifications

Valve specifications
Angle of Rotation
95
ANSI Class
250
Controllable Flow Range
Stem up - open A b AB
Cv
40
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol steam
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
2" [50]
Actuator specifications
Actuator Type
Spring return
Control Type
DC 2...10 V
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding)
2.5 W
Power Consumption (Running)
3.5 W
Running Time (Fail-safe)
<20 s
Running Time (Motor)
95 s / 90B0
Voltage AC/DC
AC/DC 24 V
