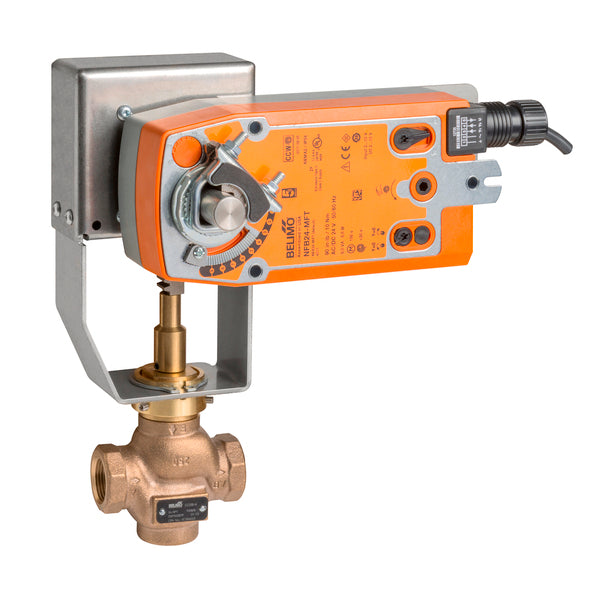

G240B-N+NFX24-MFT-S-X1 | Globe Valve | 1.5" | 2 Way | 28 Cv | w/ Spring Return | 24V | MFT-S | Belimo
Globe Valve (GV), 1 1/2", 2-way, ANSI Class 250, Cv 28 |Configurable Valve Actuator, Spring return, AC/DC 24 V, 2...10 V, 2 x SPDT, MFT/programmable
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to G240B-N+NFX24-MFT-S-X1
Documents and manuals
Belimo G240B-N+NFX24-MFT-S-X1 Documents
Overview
Details for G240B-N+NFX24-MFT-S-X1
Globe Valve | 1.5" | 2 Way | 28 Cv | w/ Spring Return | 24V | MFT-S
Application
This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include unit ventilators, VAV box re-heat coils and bypass loops. This valve is suitable for use in hydronic systems with variable flow. Bronze and stainless steel trim valves can be used for steam applications, depending on actuator and close-off combinations.
Specifications
- Valve specifications
- Angle of Rotation
- 95
- ANSI Class
- 250
- Controllable Flow Range
- Stem up - open A b AB
- Cv
- 28
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol steam
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Bronze
- Valve Size
- 1.5" [40]
- Actuator specifications
- Actuator Type
- Spring return
- Auxiliary Switches
- 2 x SPDT
- Control Type
- MFT/Programmable
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- 5 mm hex crank (3/16" Allen) supplied
- Power Consumption (Holding)
- 3 W
- Power Consumption (Running)
- 6.5 W
- Running Time (Fail-safe)
- <20 s
- Running Time (Motor)
- 150 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
