G220B-K+LVB24-3 | Globe Valve | 0.75" | 2 Way | 7.5 Cv | w/ Non-Spring | 24V | Floating | Belimo
Globe Valve (GV), 3/4", 2-way, ANSI Class 250, Cv 7.5 |Valve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point

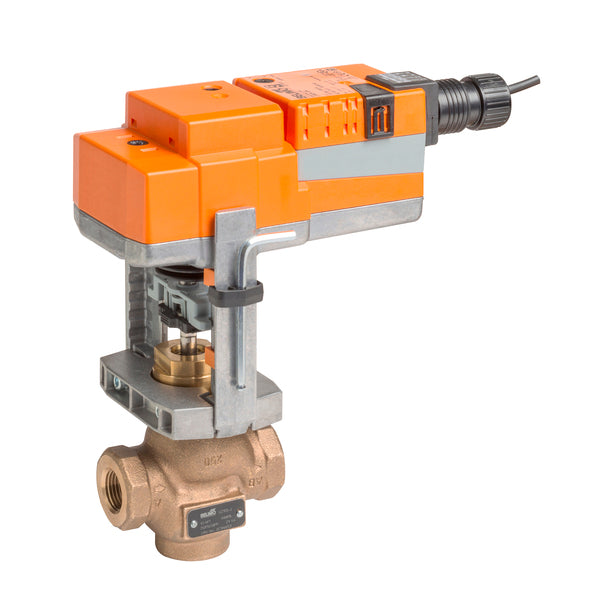

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to G220B-K+LVB24-3
Documents and manuals
Belimo G220B-K+LVB24-3 Documents
Overview
Details for G220B-K+LVB24-3
Globe Valve | 0.75" | 2 Way | 7.5 Cv | w/ Non-Spring | 24V | Floating
For fail-safe, modulating control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft from 3/8" up to 1/2" in diameter by means of its universal clamp, 1/2" shaft centered at delivery. For shafts up to 3/4" use K6-1 accessory. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft. The actuator operates in response to a 2...10 V, or with the addition of a 500Ω resistor, a 4...20 mA control input from an electronic controller or positioner. A 2...10 V feedback signal is provided for position indication.Specifications
- Valve specifications
- ANSI Class
- 250
- Controllable Flow Range
- Stem up - open A b AB
- Cv
- 7.5
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol steam
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Bronze
- Valve Size
- 0.75" [20]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Force
- 500 N [115 lbf]
- Manual Override
- 4 mm hex crank (shipped w/actuator)
- Power Consumption (Holding)
- 0.5 W
- Power Consumption (Running)
- 1 W
- Running Time (Motor)
- 90 s /
- Stroke
- 0.75" [19 mm]
- Voltage AC/DC
- AC/DC 24 V
