G220B-K+LF24-SR-S US | Globe Valve | 0.75" | 2 Way | 7.5 Cv | w/ Spring Return | 24V | Modulating | SW | Belimo
Globe Valve (GV), 3/4", 2-way, ANSI Class 250, Cv 7.5 |Valve Actuator, Spring return, AC/DC 24 V, 2...10 V, 1 x SPDT, modulating

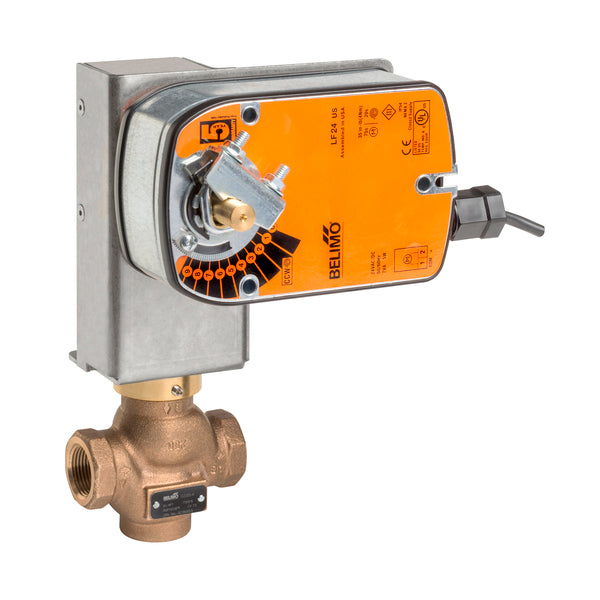

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to G220B-K+LF24-SR-S US
Overview
Details for G220B-K+LF24-SR-S US
Globe Valve | 0.75" | 2 Way | 7.5 Cv | w/ Spring Return | 24V | Modulating | SW
For fail-safe, modulating control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft from 3/8" up to 1/2" in diameter by means of its universal clamp, 1/2" shaft centered at delivery. For shafts up to 3/4" use K6-1 accessory. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft. The actuator operates in response to a 2...10 V, or with the addition of a 500Ω resistor, a 4...20 mA control input from an electronic controller or positioner. A 2...10 V feedback signal is provided for position indication.Specifications
- Valve specifications
- Angle of Rotation
- 90
- ANSI Class
- 250
- Controllable Flow Range
- Stem up - open A b AB
- Cv
- 7.5
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol steam
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Bronze
- Valve Size
- 0.75" [20]
- Actuator specifications
- Actuator Type
- Spring return
- Auxiliary Switches
- 1 x SPDT
- Degree of Protection
- IP54 NEMA 2
- Electrical Connection
- cable
- Power Consumption (Holding)
- 1 W
- Power Consumption (Running)
- 2.5 W
- Running Time (Fail-safe)
- <25 s
- Running Time (Motor)
- 150 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
