FSTF24 US | Fire & Smoke Actuator | 18 in-lb | Spring Return | 24V | On/Off | 1m Cable | Belimo

Fire & Smoke Actuator, 18 in-lb [2 Nm], Spring return, AC/DC 24 V, On/Off

Belimo | FSTF24 US

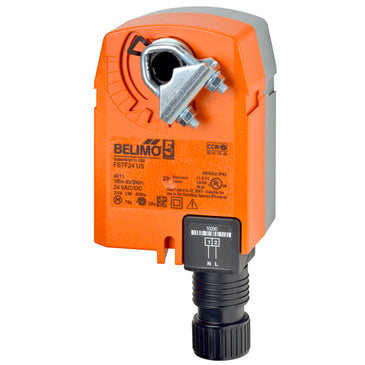

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to FSTF24 US

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Belimo FSTF24 US Documents

Datasheet More Info

Overview

Details for FSTF24 US

Fire & Smoke Actuator | 18 in-lb | Spring Return | 24V | On/Off | 1m Cable

The FS series of spring-return actuators are designed for the operation of UL555 and UL555S listed fire/smoke dampers in ventilation and air-conditioning systems.

Specifications

Actuator Type: Spring return
Angle of Rotation: 95
Control Type: On/Off
Degree of Protection: IP42 NEMA 2 UL Enclosure Type 2
Direction of Rotation (Fail-Safe): Reversible with cw/ccw mounting
Electrical Connection: cable
Power Consumption (Running): 2 W
Running Time (Fail-safe): <25 s
Running Time (Motor): 75 s / 90B0
Safety Function: YES
Torque: 18 in-lb [2 Nm]
Voltage AC/DC: AC/DC 24 V

Parts & Accessories

Belimo KH-AFB AF/NF crankarm (with 3/4" diameter shaft pass through). | Blackhawk Supply

KH-AFB | AF/NF crankarm (with 3/4" diameter shaft pass through). | Belimo

Belimo KG8 Ball joint for 5/16" diameter rod | 90 | galvanized steel. | Blackhawk Supply

KG8 | Ball joint for 5/16" diameter rod | 90 | galvanized steel. | Belimo

Belimo SH8 Push rod for KG6 & KG8 ball joints (36" L | 5/16" diameter). | Blackhawk Supply

SH8 | Push rod for KG6 & KG8 ball joints (36" L | 5/16" diameter). | Belimo

Belimo ZS-100 Weather shield - galvaneal (13" L x 8" W x 6" D). | Blackhawk Supply

ZS-100 | Weather shield - galvaneal (13" L x 8" W x 6" D). | Belimo

Belimo ZG-AFB AF/NF crankarm adaptor kit. | Blackhawk Supply

ZG-AFB | AF/NF crankarm adaptor kit. | Belimo

Belimo ZG-AFB118 AF/NF crankarm adaptor kit. | Blackhawk Supply

ZG-AFB118 | AF/NF crankarm adaptor kit. | Belimo
