FSTF24-S US | Fire & Smoke Actuator | 18 in-lb | Spring Return | 24V | On/Off | 2SPST | 1m Cable | Belimo

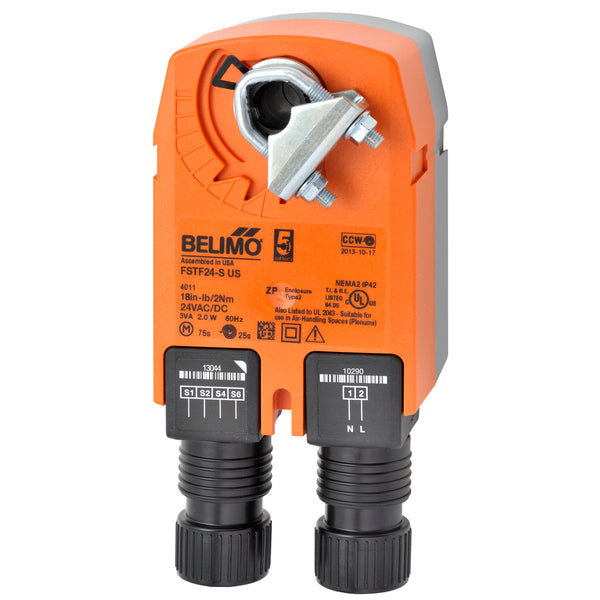

Fire & Smoke Actuator, 18 in-lb [2 Nm], Spring return, AC/DC 24 V, On/Off, 2 x SPST

Belimo | FSTF24-S US
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to FSTF24-S US
DocumentsOverview SpecificationsParts & AccessoriesReviews

Documents and manuals

Belimo FSTF24-S US Documents

Datasheet More Info

Overview

Details for FSTF24-S US

Fire & Smoke Actuator | 18 in-lb | Spring Return | 24V | On/Off | 2SPST | 1m Cable

Specifications

Actuator Type
Spring return
Angle of Rotation
95
Auxiliary Switches
2 x SPST
Control Type
On/Off
Degree of Protection
IP42 NEMA 2 UL Enclosure Type 2
Direction of Rotation (Fail-Safe)
Reversible with cw/ccw mounting
Electrical Connection
cable
Power Consumption (Running)
2 W
Running Time (Fail-safe)
<25 s
Running Time (Motor)
75 s / 90B0
Safety Function
YES
Torque
18 in-lb [2 Nm]
Voltage AC/DC
AC/DC 24 V

Parts & Accessories

Belimo KH-AFB AF/NF crankarm (with 3/4" diameter shaft pass through). | Blackhawk Supply
KH-AFB | AF/NF crankarm (with 3/4" diameter shaft pass through). | Belimo
$20.25 each
Belimo KG8 Ball joint for 5/16" diameter rod | 90 | galvanized steel. | Blackhawk Supply
KG8 | Ball joint for 5/16" diameter rod | 90 | galvanized steel. | Belimo
$23.25 each
Belimo SH8 Push rod for KG6 & KG8 ball joints (36" L | 5/16" diameter). | Blackhawk Supply
SH8 | Push rod for KG6 & KG8 ball joints (36" L | 5/16" diameter). | Belimo
$19.35 each
Belimo ZS-100 Weather shield - galvaneal (13" L x 8" W x 6" D). | Blackhawk Supply
ZS-100 | Weather shield - galvaneal (13" L x 8" W x 6" D). | Belimo
$113.40 each
Belimo ZG-AFB AF/NF crankarm adaptor kit. | Blackhawk Supply
ZG-AFB | AF/NF crankarm adaptor kit. | Belimo
$63.00 each
Belimo ZG-AFB118 AF/NF crankarm adaptor kit. | Blackhawk Supply
ZG-AFB118 | AF/NF crankarm adaptor kit. | Belimo
$61.20 each
