F665-300SHP+PRXUP-MFT-T | Butterfly Valve | 2.5" | 2 Way | 143 Cv | w/ Non-Spring | 24 -240V | MFT | SW | NEMA 4XH | Belimo

Butterfly Valve (BFV), 2 1/2", 2-way, ANSI Class 300, Cv 146 |Configurable Valve Actuator, Non fail-safe, AC 24...240 V / DC 24...125 V, 2...10 V, 2 x SPDT, terminals, BACnet MS/TP Modbus RTU MP-Bus, MFT/programmable

Belimo | F665-300SHP+PRXUP-MFT-T

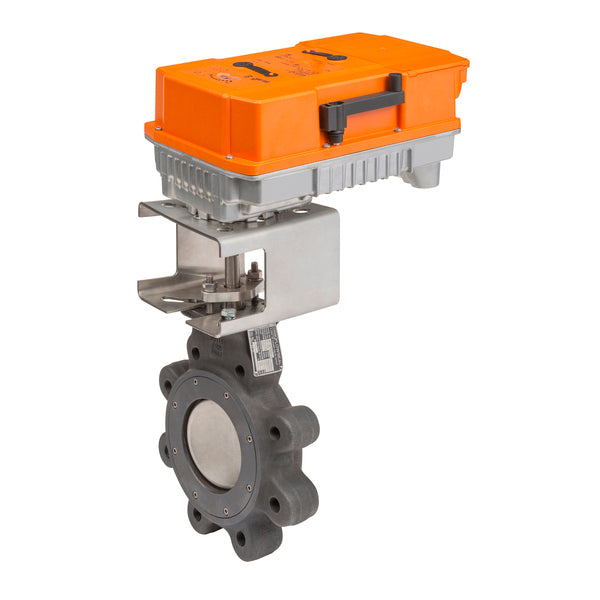

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F665-300SHP+PRXUP-MFT-T
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Belimo F665-300SHP+PRXUP-MFT-T Documents

Datasheet More Info

Overview

Details for F665-300SHP+PRXUP-MFT-T

Butterfly Valve | 2.5" | 2 Way | 143 Cv | w/ Non-Spring | 24 -240V | MFT | SW | NEMA 4XH

Specifications

Valve specifications
Angle of Rotation
90
ANSI Class
300
Controllable Flow Range
Quarter turn mechanically limited
Cv
146
End Connection
Lug types
End Fitting
Flange
Fluid
Chilled or hot water up to 60% glycol steam
Pattern
2-way
Pressure Independent
NO
Valve Size
2.5" [65]
Actuator specifications
Actuator Type
Non fail-safe
Auxiliary Switches
2 x SPDT
Control Type
MFT/Programmable
Degree of Protection
IP66/67 NEMA 4X UL Enclosure Type 4X
Electrical Connection
terminals
Manual Override
7 mm hex crank supplied
Power Consumption (Holding)
6 W
Power Consumption (Running)
20 W
Running Time (Motor)
35 s / 90B0
Torque
160 Nm
Voltage AC/DC
AC 24...240 V / DC 24...125 V
