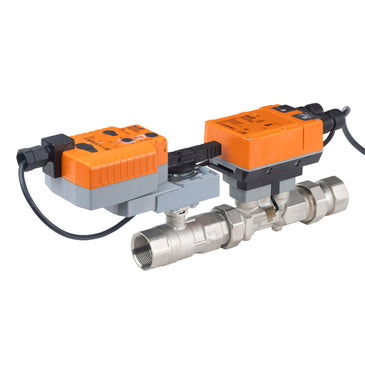

EP200+AKRX-E | Configurable | Electr. 2-way PI-CCV EPIV fail-safe | AC/DC 24 V | BACnet MS/TP | Modbus RTU | MP-Bus | DN 2"[50] | Internal thread | GPM 66 | Belimo

Configurable,Electr. 2-way PI-CCV EPIV fail-safe, AC/DC 24 V, BACnet MS/TP, Modbus RTU, MP-Bus, DN 2"[50], Internal thread, GPM 66

Brand: BelimoSKU: EP200+AKRX-E

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to EP200+AKRX-E

Jump to: Overview & Specifications Reviews

Overview Details for EP200+AKRX-E

Pressure Independent Valve, 2-way, Internal thread, (EPIV)

Actuator specifications

Specifications

Item Number

EP200+AKRX-E

Brand

Belimo

Type

EPIV

Actuator Type

Electrical fail-safe

Control Type

BACnet MS/TP
Modbus RTU
MP-Bus
DC 2...10 V
DC 0.5...10 V
Hybrid (communicative / analog)

Degree of Protection

IP54, NEMA 2, UL Enclosure Type 2

Electrical Connection

cable

Manual Override

External push button

Power Consumption (Holding)

5 W

Power Consumption (Running)

6 W

Running Time (Fail-safe)

<35 s

Running Time (Motor)

90 s

Voltage AC/DC

AC/DC 24 V

Angle of Rotation: 90
End Fitting: Internal thread
Flow: 66
Fluid: Chilled or hot water, up to 60% glycol max (open loop/steam not allowed)
Pattern: 2-way
PI-Technology: Electronic
Pressure Independent: YES
Sensor Technology: Ultrasonic with glycol and temperature compensation
Trim: Stainless steel
Valve Size: 2" [50]
