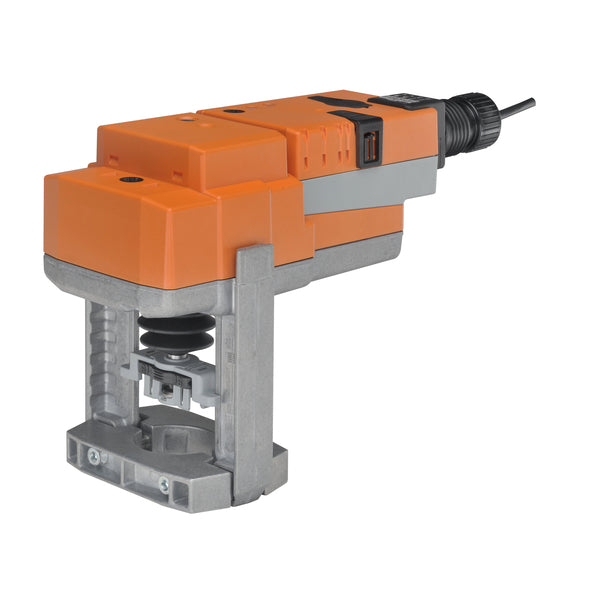

BGVL+SVX24-MFT | Configurable Valve Actuator | Electronic fail-safe | AC/DC 24 V | DC 2...10 V | Belimo
Retrofit valve linkageFor Belimo Globe Valve with LV and SV Series Actuators|Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable
Documents and manuals
Belimo BGVL+SVX24-MFT Documents
Overview
Details for BGVL+SVX24-MFT
Configurable Valve Actuator | Electronic fail-safe | AC/DC 24 V | DC 2...10 V
Application
The BGVL kit is designed to easily attach LV and SV series actuators to Belimo Globe Valves. The tapered bonnet and notched stem design allow easy installation of the BGVL on ½” to 2” two-way or three-way valves in both normally open and normally closed configurations.
Operation
The BGVL linkage with actuator will provide 20 mm of linear travel to accommodate a wide range of valve sizes. Default/Configuration The default set up for a BGVL linkage will be factory installed along with a LV or SV series actuator. Included in the kit will be all the necessary hardware to facilitate mounting to the Belimo Globe Valve.
Specifications
- Actuator Type
- Non fail-safe
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Fluid
- Chilled or hot water and steam
- Force
- 1500 N [340 lbf]
- Power Consumption (Holding)
- 2 W
- Power Consumption (Running)
- 1.5 W
- Protection category
- IP54
- Running Time (Motor)
- 90 s /
- Running Time range (Motor)
- 35...150 s
- Stroke
- 0.6" [15 mm] LV 3/4" [20 mm] SV
- Voltage AC/DC
- AC/DC 24 V
