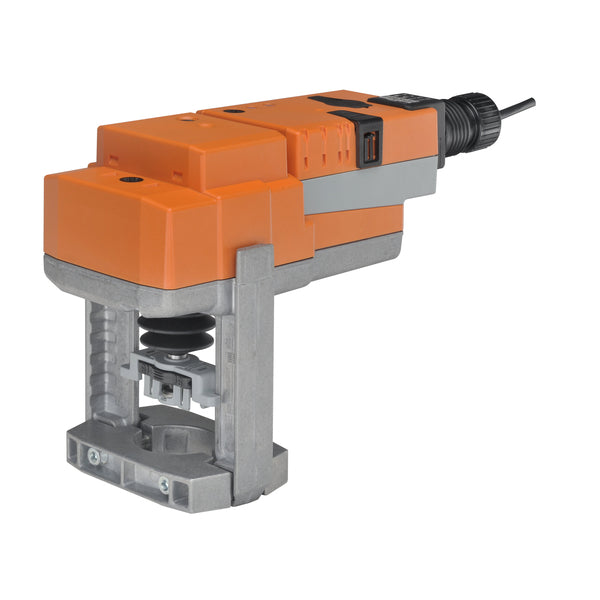

BGVL+LVB24-SR | Valve Actuator | Non fail-safe | AC/DC 24V | DC2-10V | Belimo
Retrofit valve linkageFor Belimo Globe Valve with LV and SV Series Actuators|Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, modulating
Documents and manuals
Belimo BGVL+LVB24-SR Documents
Overview
Details for BGVL+LVB24-SR
Valve Actuator | Non fail-safe | AC/DC 24V | DC2-10V
Valve Actuator, Non fail-safe, AC/DC 24 V, DC 2...10 V
Application
The BGVL kit is designed to easily attach LV and SV series actuators to Belimo Globe Valves. The tapered bonnet and notched stem design allow easy installation of the BGVL on ½” to 2” two-way or three-way valves in both normally open and normally closed configurations.
Operation
The BGVL linkage with actuator will provide 20 mm of linear travel to accommodate a wide range of valve sizes
Default/Configuration
The default set up for a BGVL linkage will be factory installed along with a LV or SV series actuator. Included in the kit will be all the necessary hardware to facilitate mounting to the Belimo Globe Valve.
Specifications
- Actuator Type
- Non fail-safe
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Fluid
- Chilled or hot water and steam
- Force
- 500 N [115 lbf]
- Power Consumption (Holding)
- 0.5 W
- Power Consumption (Running)
- 1 W
- Protection category
- IP54
- Running Time (Motor)
- 90 s /
- Stroke
- 0.6" [15 mm] LV 3/4" [20 mm] SV
- Voltage AC/DC
- AC/DC 24 V
