B240VS+PRXUP-MFT-T | Ball Valve | 1.5
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: BelimoSKU: B240VS+PRXUP-MFT-T

Web Price:

$3,115.35
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

Email

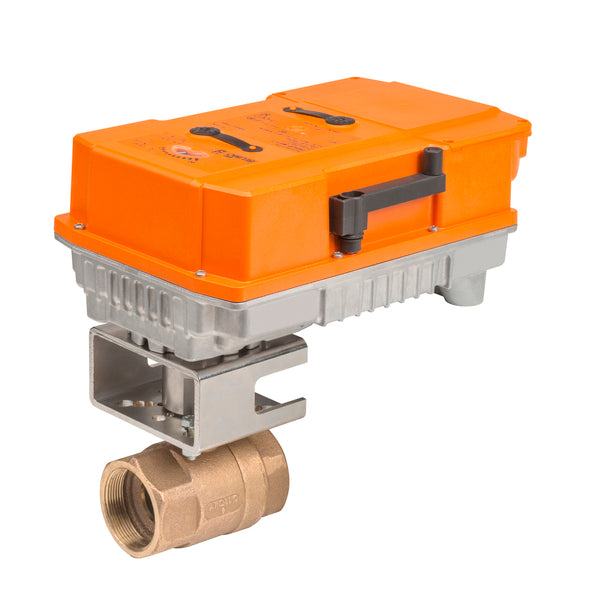

B240VS+PRXUP-MFT-T | Ball Valve | 1.5" | 2 Way | 177 Cv | w/ Non-Spring | 24 -240V | MFT | SW | NEMA 4XH | Belimo

Ball Valve (VS), 1 1/2", 2-way, Cv 177 |Configurable Valve Actuator, Non fail-safe, AC 24...240 V / DC 24...125 V, 2...10 V, 2 x SPDT, terminals, BACnet MS/TP Modbus RTU MP-Bus, MFT/programmable

Belimo | B240VS+PRXUP-MFT-T
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B240VS+PRXUP-MFT-T
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Belimo B240VS+PRXUP-MFT-T Documents

Datasheet More Info

Overview

Details for B240VS+PRXUP-MFT-T

Ball Valve | 1.5" | 2 Way | 177 Cv | w/ Non-Spring | 24 -240V | MFT | SW | NEMA 4XH

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
90B0 rotation
Cv
177
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol steam
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
1.5" [40]
Actuator specifications
Actuator Type
Non fail-safe
Auxiliary Switches
2 x SPDT
Control Type
MFT/Programmable
Degree of Protection
IP66/67 NEMA 4X UL Enclosure Type 4X
Electrical Connection
terminals
Manual Override
7 mm hex crank supplied
Power Consumption (Holding)
6 W
Power Consumption (Running)
20 W
Running Time (Motor)
35 s / 90B0
Torque
160 Nm
Voltage AC/DC
AC 24...240 V / DC 24...125 V
