B225VS+AFX24-MFT-S-X1 | Ball Valve | 1" | 2 Way | 68 Cv | w/ Spg Rtn | 24V | MFT | SW | Belimo

Ball Valve (VS), 1", 2-way, Cv 68 |Configurable Valve Actuator, Spring return, AC/DC 24 V, 2...10 V, 2 x SPDT, MFT/programmable

Belimo | B225VS+AFX24-MFT-S-X1

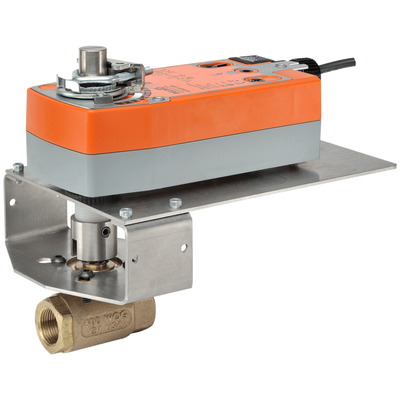

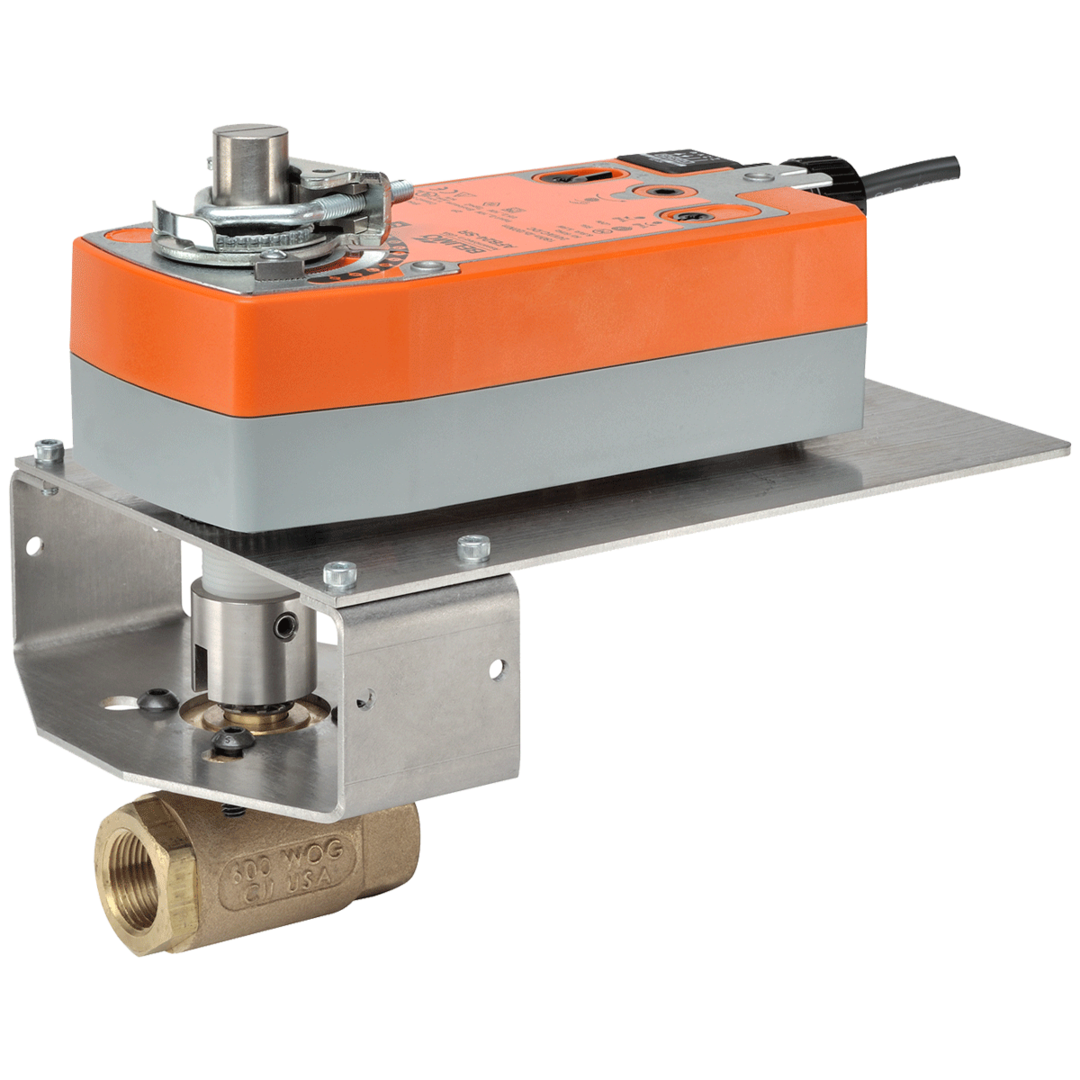

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B225VS+AFX24-MFT-S-X1
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Belimo B225VS+AFX24-MFT-S-X1 Documents

Datasheet More Info

Overview

Details for B225VS+AFX24-MFT-S-X1

Ball Valve | 1" | 2 Way | 68 Cv | w/ Spg Rtn | 24V | MFT | SW

Specifications

Valve specifications
Angle of Rotation
95
Controllable Flow Range
90B0 rotation
Cv
68
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol steam
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
1" [25]
Actuator specifications
Actuator Type
Spring return
Auxiliary Switches
2 x SPDT
Control Type
MFT/Programmable
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding)
3 W
Power Consumption (Running)
7.5 W
Running Time (Fail-safe)
<20 s
Running Time (Motor)
150 s / 90B0
Voltage AC/DC
AC/DC 24 V
