B219VSS+NFBUP-S-X1 | Ball Valve | 0.75" | 2 Way | 30 Cv | w/ Spg Rtn | 24 -240V | On/Off | SW | Belimo
Ball Valve (VSS), 3/4", 2-way, Cv 30 |Valve Actuator, Spring return, AC 24...240 V / DC 24...125 V, On/Off, 2 x SPDT

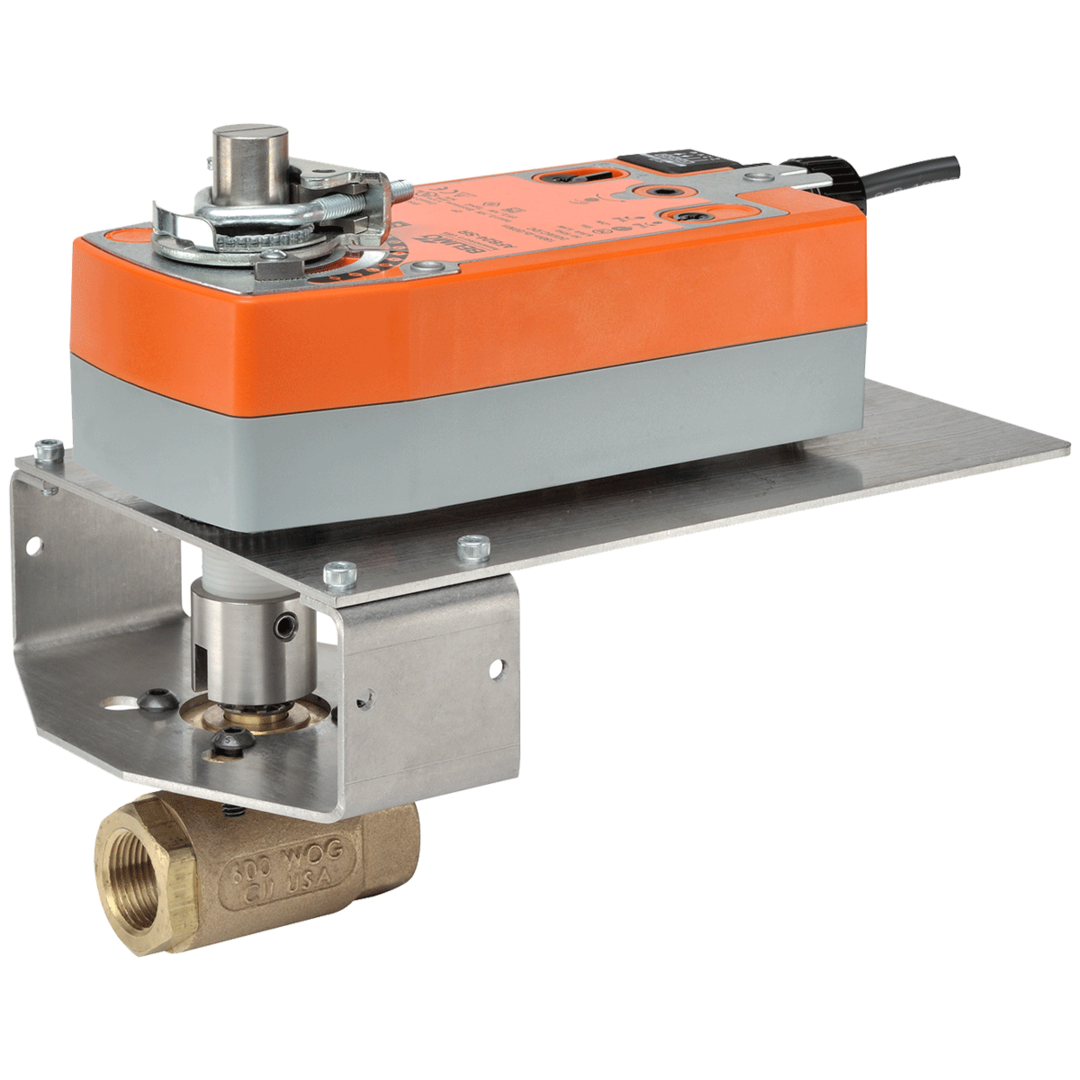

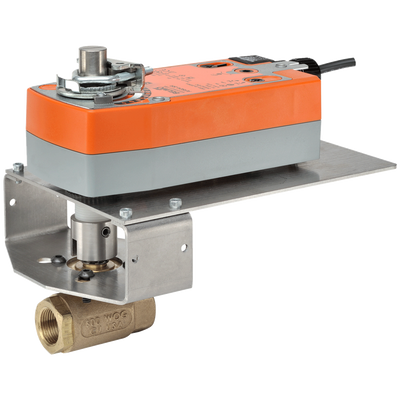

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B219VSS+NFBUP-S-X1
Overview
Details for B219VSS+NFBUP-S-X1
Ball Valve | 0.75" | 2 Way | 30 Cv | w/ Spg Rtn | 24 -240V | On/Off | SW
Specifications
- Valve specifications
- Angle of Rotation
- 95
- Controllable Flow Range
- 90B0 rotation A b AB open ccw B b AB open cw
- Cv
- 30
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol steam
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 0.75" [20]
- Actuator specifications
- Actuator Type
- Spring return
- Auxiliary Switches
- 2 x SPDT
- Control Type
- On/Off
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- 5 mm hex crank (3/16" Allen)
