B2100VB-024+PRBUP-3-T | VBall Valve | 1" | 2 Way | 24 Cv | w/ Non-Spring | 24 -240V | On/Off | Belimo
Ball Valve (VB), 1", 2-way, ANSI Class 300, Cv 24 |Valve Actuator, Non fail-safe, AC 24...240 V / DC 24...125 V, On/Off, Floating point, 2 x SPDT, terminals

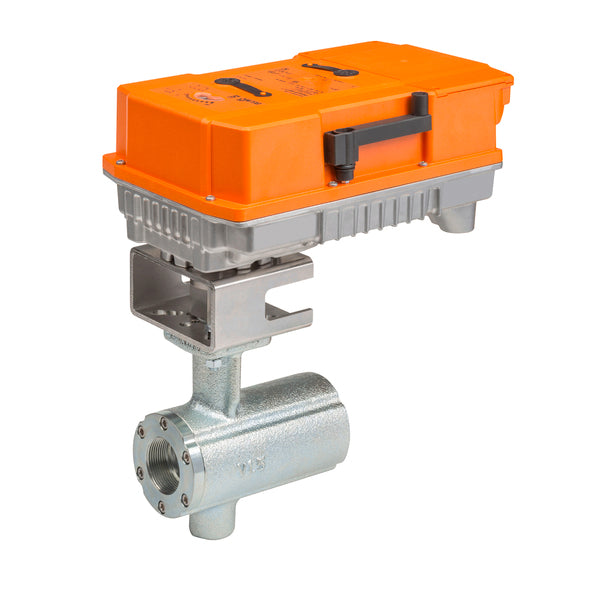

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B2100VB-024+PRBUP-3-T
Documents and manuals
Belimo B2100VB-024+PRBUP-3-T Documents
Overview
Details for B2100VB-024+PRBUP-3-T
VBall Valve | 1" | 2 Way | 24 Cv | w/ Non-Spring | 24 -240V | On/Off
Specifications
- Valve specifications
- Angle of Rotation
- 90
- ANSI Class
- 300
- Controllable Flow Range
- 75B0
- Cv
- 24
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol steam
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 1" [25]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Auxiliary Switches
- 2 x SPDT
- Control Type
- Floating/3-point
- Degree of Protection
- IP66/67 NEMA 4X UL Enclosure Type 4X
- Electrical Connection
- terminals
- Manual Override
- 7 mm hex crank supplied
- Power Consumption (Holding)
- 6 W
- Power Consumption (Running)
- 20 W
- Running Time (Motor)
- 35 s / 90B0
- Voltage AC/DC
- AC 24...240 V / DC 24...125 V
