B2050VSS-15+LF120-S US | Ball Valve | 0.5" | 2 Way | 15 Cv | w/ Spg Rtn | 120V | On/Off | SW | Belimo

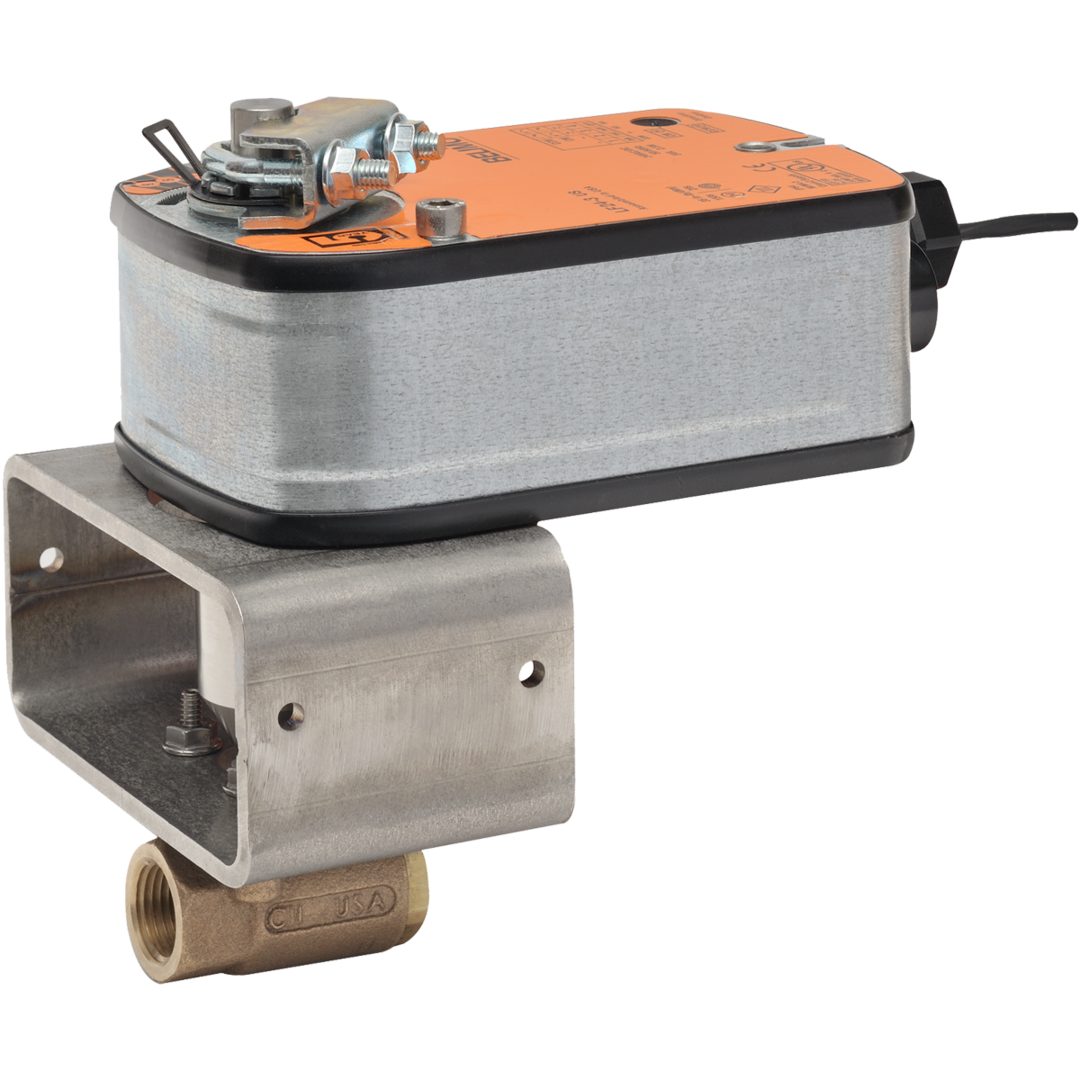

The photo is for representation purposes only and may not be a photo of product being purchased.
Overview
Details for B2050VSS-15+LF120-S US
Ball Valve | 0.5" | 2 Way | 15 Cv | w/ Spg Rtn | 120V | On/Off | SW
- Live-load packing set
- Stainless steel ball & stem
- Blow-out proof stem design
Application
These threaded valves are designed to provide modulating or two position control of hot or chilled water and saturated steam systems under 50 psi. Typical applications include reheat coils, VAV terminal control, unit ventilators, and air handlers, especially in areas which have minimum profile requirements.
- Up to 50 psi steam
- ½” - 2000 PSIG WOG, Cold Non-Shock.
- Federal Specification: WW-V-35C,Type II, Composition: SS Style: 3
Specifications
- Item Number
- B2050VSS-15+LF120-S US
- Brand
- Belimo
- Control Input
- On/Off
- Control Valves Type
- Ball Valve
- Cv / GPM
- 15Â Cv
- End Switch
- Yes
- Spring Return
- Spring Return
- Valve Size
- 0.5" - 2 Way
- Voltage
- 120V
- Actuator specifications
- Actuator Type
- Spring return
- Auxiliary Switches
- 1 x SPDT
- Degree of Protection
- IP54 NEMA 2
- Electrical Connection
- cable
- Power Consumption (Holding)
- 3.5 W
- Power Consumption (Running)
- 5.5 W
- Running Time (Fail-safe)
- <25 s
- Running Time (Motor)
- 75 s / 90B0
- Voltage AC/DC
- AC 120 V
- Valve specifications
- Angle of Rotation
- 90
- Controllable Flow Range
- 90B0 rotation A b AB open ccw B b AB open cw
- Cv
- 15
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol steam
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 0.5" [15]
