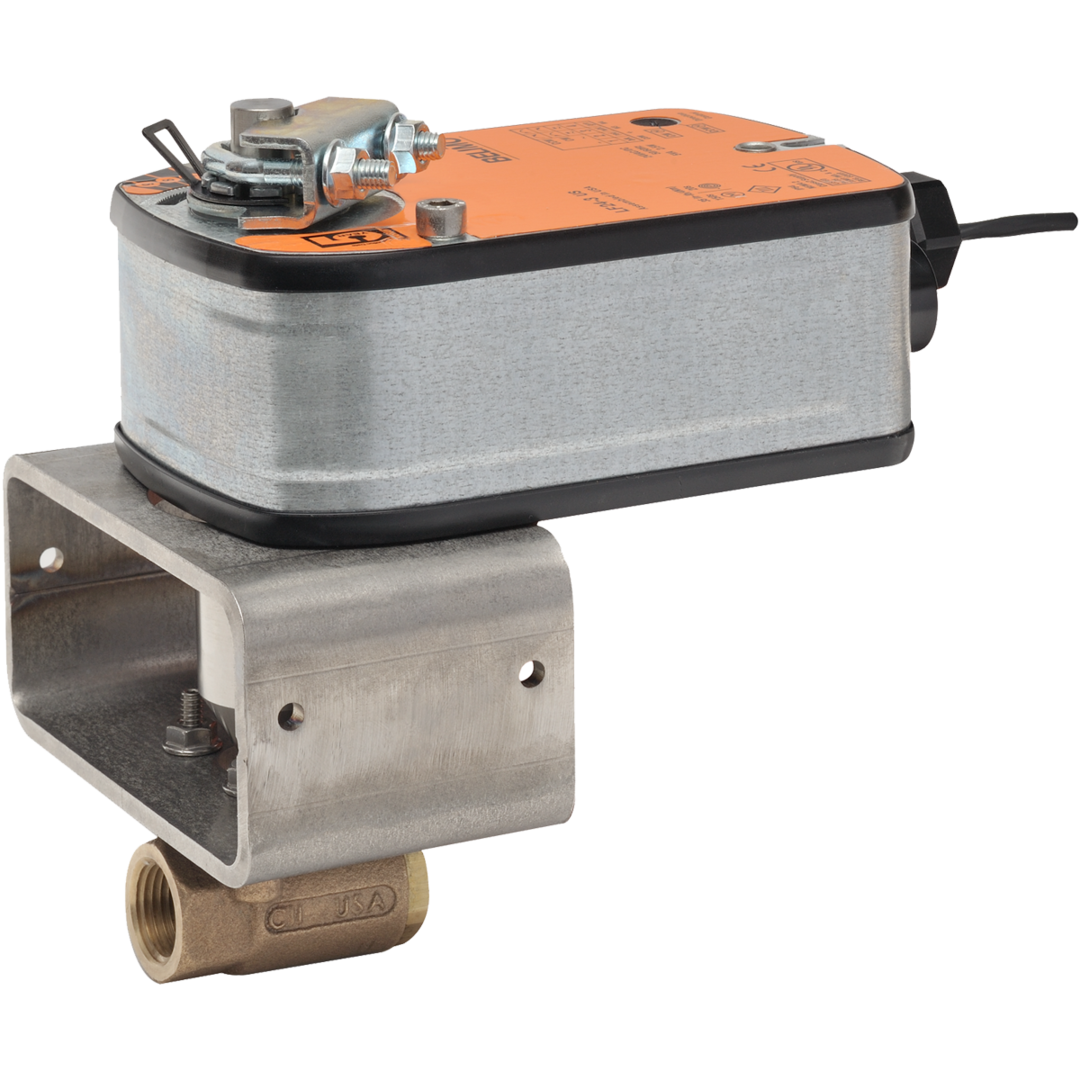

B2050VS-01+LF24-S US | Ball Valve | 0.5" | 2 Way | 1 Cv | w/ Spg Rtn | 24V | On/Off | SW | Belimo

Ball Valve (VS), 1/2", 2-way, Cv 1 |Valve Actuator, Spring return, AC/DC 24 V, On/Off, 1 x SPDT

Belimo | B2050VS-01+LF24-S US
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B2050VS-01+LF24-S US

Documents and manuals

Belimo B2050VS-01+LF24-S US Documents

Overview

Details for B2050VS-01+LF24-S US

Ball Valve | 0.5" | 2 Way | 1 Cv | w/ Spg Rtn | 24V | On/Off | SW

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
90B0 rotation
Cv
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol steam
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
0.5" [15]
Actuator specifications
Actuator Type
Spring return
Auxiliary Switches
1 x SPDT
Degree of Protection
IP54 NEMA 2
Electrical Connection
cable
Power Consumption (Holding)
2.5 W
Power Consumption (Running)
5 W
Running Time (Fail-safe)
<25 s
Running Time (Motor)
75 s / 90B0
Voltage AC/DC
AC/DC 24 V
