ARX24-SR | Valve Actuator | Non-Spg | 24V | Modulating | Belimo

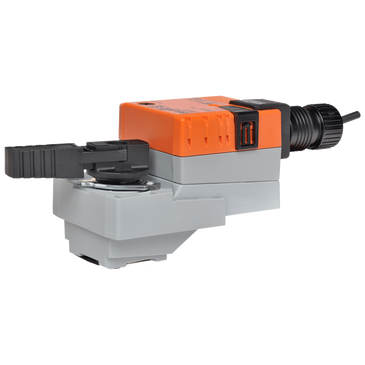

Belimo | ARX24-SR

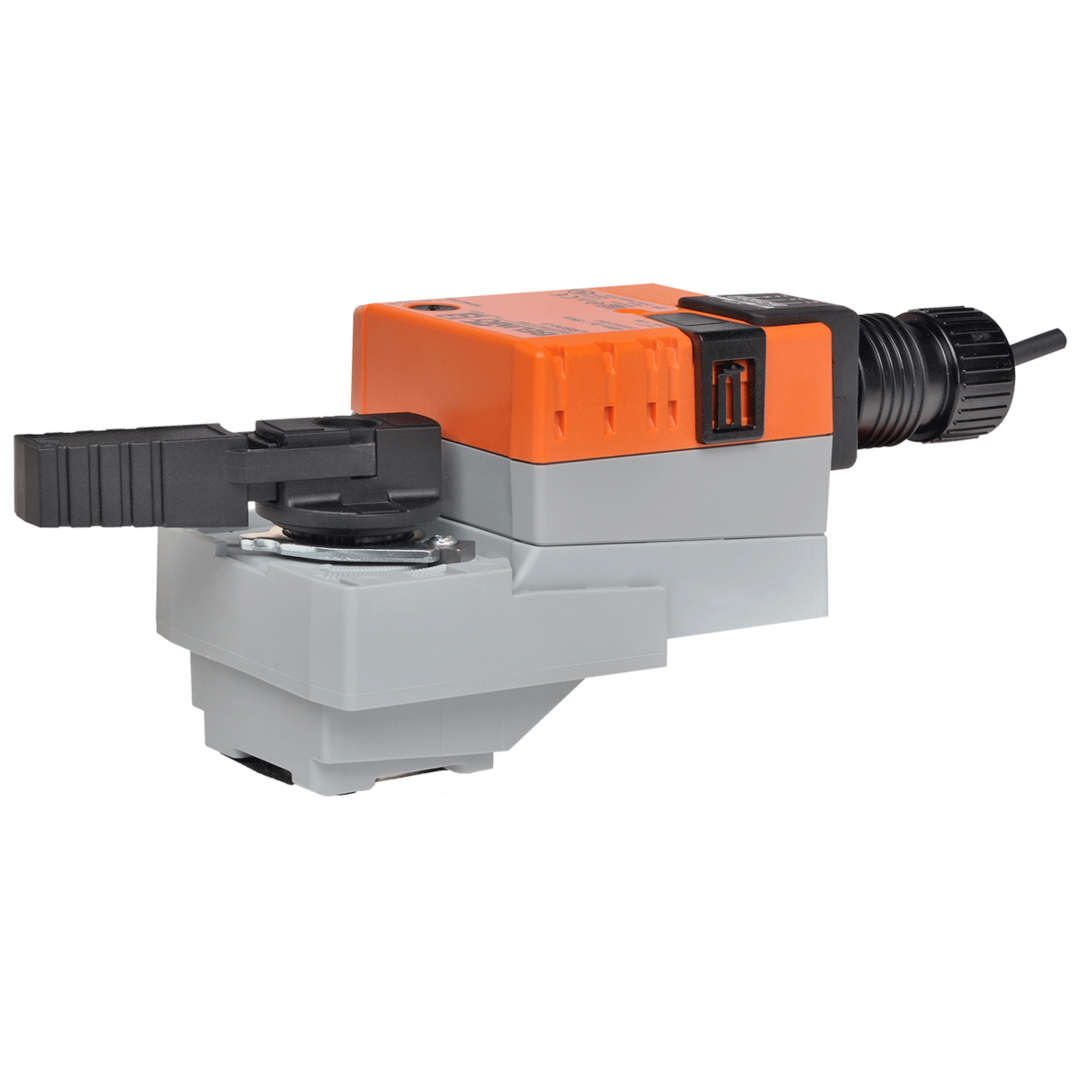

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview

Details for ARX24-SR

Valve Actuator | Non-Spg | 24V | Modulating

Modulating, Non-Spring Return, 24 V, for DC 2...10 V or 4...20 mA

Specifications

Item Number
ARX24-SR
Brand
Belimo
Actuator Type
Valve
Control Input
Modulating
Spring Return
Non-Spring Return
Voltage
24V
Actuator specifications
Actuator Type
Non fail-safe
Control Type
DC 2...10 V
Degree of Protection
IP54 NEMA 2
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Holding)
0.4 W
Power Consumption (Running)
2.5 W
Running Time (Motor)
90 s / 90B0
Voltage AC/DC
AC/DC 24 V
Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
25
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
1.25" [32]

Documents and manuals

Belimo ARX24-SR Documents
