ARX24-3 | Valve Actuator | Non-Spg | 24V | On/Off/Floating Point | Belimo

Configurable Valve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point

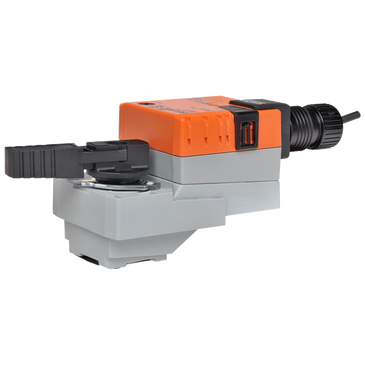

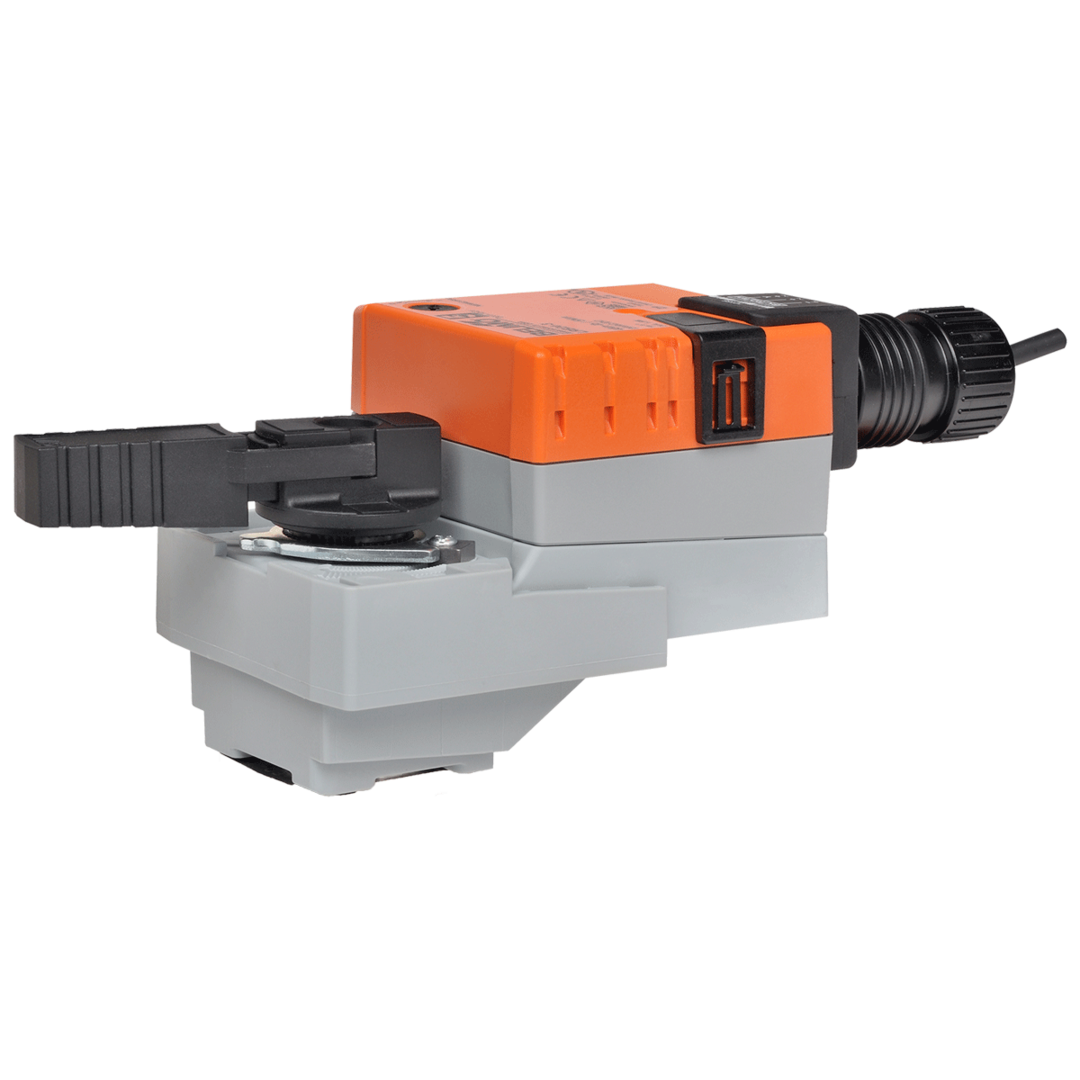

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Specifications Documents Reviews

Overview

Details for ARX24-3

Valve Actuator | Non-Spg | 24V | On/Off/Floating Point

200 psi (2: to 12") and 150 psi (14"-30") bubble tight shut-off, Long stem design allows for 2" insulation, Valve face-to-face dimensions comply with API 609 & MSS-SP-67, Completely assembled and tested, ready for installation

Specifications

Valve specifications
Angle of Rotation: 90
Controllable Flow Range: 75B0
Cv: 25
End Fitting: Internal thread
Fluid: Chilled or hot water up to 60% glycol
Pattern: 2-way
Pressure Independent: NO
Trim: Stainless steel
Valve Size: 1.25" [32]
Actuator specifications
Actuator Type: Non fail-safe
Control Type: Floating/3-point
Degree of Protection: IP54 NEMA 2
Electrical Connection: cable
Manual Override: External push button
Power Consumption (Holding): 0.5 W
Power Consumption (Running): 2.5 W
Running Time (Motor): 90 s / 90B0
Voltage AC/DC: AC/DC 24 V

Documents and manuals

Belimo ARX24-3 Documents

Datasheet More Info
