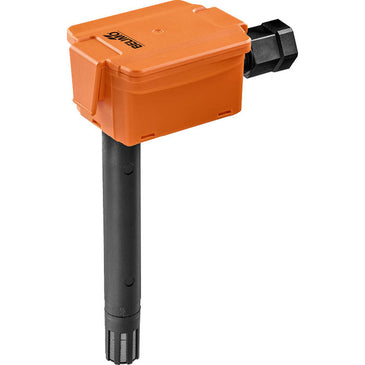

22DTH-51ML | Duct Temp+Hum Sensor NTC10k V | Belimo
Duct Sensor Humidity / Temperature active, 0...5 V, 0...10 V, passive NTC10k (10k2), Probe length 5.5" [140 mm], Probe diameter 7.09" [19.5 mm]
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 22DTH-51ML
Documents and manuals
Belimo 22DTH-51ML Documents
Overview
Details for 22DTH-51ML
Duct Temp+Hum Sensor NTC10k V
Duct Temp+Hum Sensor NTC10k V
DESCRIPTION
Duct Sensor Humidity / Temperature Duct mounted combined humidity (VDC) and temperature sensor. 2% accurate rH, available with dual active outputs or passive for temperature. Nema 4X / IP65 rated enclosure. Field selectable output for rH, absolute humidity, enthalpy and dewpoint
Specifications
- Application
- Duct
- Degree of Protection
- IP65 NEMA 4X
- Electrical Connection
- terminals
- Measured Values
- Temperature
- Humidity
- Measuring Range Humidity
- 0...100% RH non-condensing
- Measuring Range Temperature
- -30...160B0F [-35...70B0C]
- Measuring Range Velocity
- Max. 40 ft/s [12 m/s]
- Mounting Type
- Single Point
- Output Signal
- 0...5 V
- 0...10 V
- NTC10k (10k2)
- Probe Length
- 5.5" [140 mm]
- Product Type
- Sensor
- Sensor Type
- Humidity
- Voltage AC/DC
- AC/DC 24 V
