SRT10KRMXLT-5KTF2 | APC Smart-UPS SRT 10kVA RM with two 208V to 120V 2U 5kVA Step-Down Transformers | APC by Schneider Electric

Brand: APCSKU: SRT10KRMXLT-5KTF2
APC | SRT10KRMXLT-5KTF2

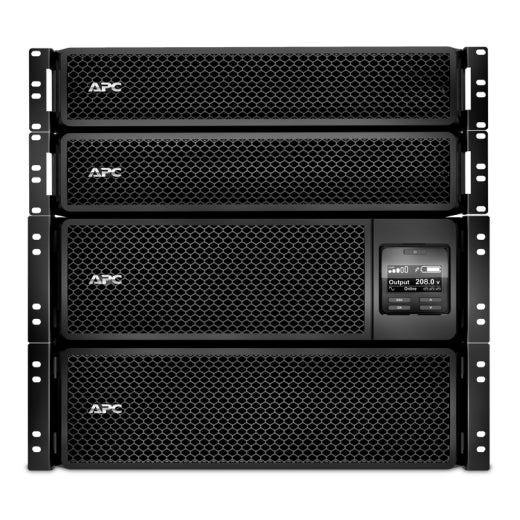

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SRT10KRMXLT-5KTF2

Overview Details for SRT10KRMXLT-5KTF2

APC Smart-UPS SRT 10kVA RM with two 208V to 120V 2U 5kVA Step-Down Transformers

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line 10U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) input, 24x NEMA 5-20R and 4x NEMA L6-30R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.

Specifications

Lead time
Usually in Stock
Run time for load
W
information_stroke
Min-max: 1000-10000 W
3min 44s
Max. Capacity Used
information_stroke
100 %
Main Input Voltage
208 V
Other Input Voltage
240 V
Main Output Voltage
120 V
208 V
Other Output Voltage
240 V
Rated power in W
10000 W
Rated power in VA
10000 VA
output connection type
24 NEMA 5-20R
4 NEMA L6-30R
Output connector type
Hard wire 3-wire (2P + E) 1
Number of rack unit
10U
battery type
Lead-acid battery
Provided equipment
CD with software
Documentation CD
Installation guide
Rack mounting hardware
Rack mounting brackets
Rack mounting support rails
Temperature probe
USB cable
Warranty card
Web/SNMP management card
Run Time
View Runtime Graph
action_new_window
Efficiency
View Efficiency Graph
action_new_window
Number of battery filled slots
0
Battery recharge time
1.5 h
Number of battery replacement quantity
2
battery voltage
+/- 192 V (split battery referenced to neutral)
Battery charger power
1191 W rated
Battery power in VAH
1799 VAh runtime
Battery life
3…5 year(s)
Replacement battery
APCRBC140
action_new_window
Battery option
SRT192RMBP2 1 3598 VAh
SRT192RMBP2 2 5397 VAh
SRT192RMBP2 3 7196 VAh
SRT192RMBP2 4 8995 VAh
SRT192RMBP2 5 10794 VAh
SRT192RMBP2 6 12593 VAh
SRT192RMBP2 8 16191 VAh
SRT192RMBP2 10 19789 VAh
Extended runtime
1
product web sub-family
High density
Number of power module free slots
0
Number of power module filled slots
0
Redundant
No
Colour
Black
Height
44.1 cm
Width
43.2 cm
Depth
71.5 cm
Net weight
197.77 kg
Mounting location
Front
Mounting preference
Lower
Mounting mode
Rack-mounted
Two post mountable
0
USB compatible
Yes
Mounting position
Horizontal
Network frequency
40...70 Hz auto-sensing
Number of input connectors
1 hard wire 3-wire (2P + E)
Input voltage limits
100...275 V adjustable (half load)
Maximum configurable power in W
10000 W
Harmonic distortion
Less than 2 %
Output frequency
50/60 Hz +/- 3 Hz sync to mains
Crest factor
3 : 1
UPS type
Double conversion online
Wave type
Sine wave
bypass type
Internal bypass (automatic and manual)
Maximum configurable power in VA
10000 VA
product certifications
ENERGY STAR V2.0 (USA)
FCC part 15 class A
UL 1778
Ambient air temperature for operation
0…40 °C
Relative humidity
0…95 % non-condensing
Operating altitude
0...10000 ft
Ambient air temperature for storage
-15…45 °C
Storage Relative Humidity
0…95 % non-condensing
Storage altitude
0.00…15240.00 m
Acoustic level
55 dBA
Heat dissipation
2490 Btu/h
IP degree of protection
IP20
Free slots
1
Preinstalled device
Network management card 3 with environmental monitoring
Alarm
Audible and visible alarms : prioritized by severity
Emergency power off
Yes
Surge energy rate
480 J
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
106 cm
Package 1 Width
100 cm
Package 1 Length
62.2 cm
Package 1 Weight
232.15 kg
Warranty
3 years repair or replace (excluding battery) and 2 years for battery
