SUA500PDR-S | APC DIN Rail - Panel Mount UPS with Standard Battery 500VA 120V | APC by Schneider Electric

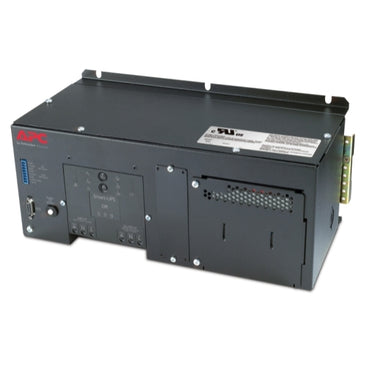

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SUA500PDR-S

Jump to: Documents Overview Specifications Reviews

Documents and manuals

APC SUA500PDR-S Documents

Datasheet More Info

Overview

Details for SUA500PDR-S

APC DIN Rail - Panel Mount UPS with Standard Battery 500VA 120V

APC DIN Rail - Panel Mount UPS with Standard Battery 500VA 120V

APC Industrial,325 Watts /500 VA,Input 120V /Output 120V, Interface Port DB-9 RS-232, SmartSlot

Includes: CD with software, Documentation CD, Installation guide, Smart UPS signalling RS-232 cable

Specifications

Lead time: Usually in Stock
Run time for load W information_stroke Min-max: 33-325 W: 7min 22s
Max. Capacity Used information_stroke: 100 %
Main Input Voltage: 120 V
Main Output Voltage: 120 V
Rated power in W: 325 W
Rated power in VA: 500 VA
Output connector type: Hard wire 3-wire (H N + E) 1
battery type: Lead-acid battery
Provided equipment: CD with software
Documentation CD
Installation guide
Smart UPS signalling RS-232 cable
Run Time: View Runtime Graph
action_new_window
Extended runtime: 0
Number of battery filled slots: 1
Number of battery free slots: 1
Battery recharge time: 2 h
Number of battery replacement quantity: 1
Battery life: 3…5 year(s)
Replacement battery: APCRBC135
action_new_window
Battery power in VAH: 120 VAh runtime
Battery charger power: 60 W rated
Number of power module filled slots: 0
Number of power module free slots: 0
Redundant: No
Height: 14.8 cm
Width: 36.2 cm
Depth: 17.1 cm
Net weight: 12.86 kg
Mounting preference: No preference
Mounting mode: Not rack-mountable
Two post mountable: 0
USB compatible: No
Input voltage limits: 75...154 V adjustable
82...144 V
Number of input connectors: 1 hard wire 3-wire (1P + N + E)
Network frequency: 50/60 Hz +/- 3 Hz auto-sensing
Harmonic distortion: Less than 5 %
Maximum configurable power in VA: 500 VA
Maximum configurable power in W: 325 W
UPS type: Line interactive
Wave type: Sine wave
Efficiency: 94 % (full load)
Output frequency: 47...53 Hz for 50 Hz nominal sync to mains
57...63 Hz for 60 Hz nominal sync to mains
product certifications: UL recognized
Acoustic level: 55 dBA
Heat dissipation: 90 Btu/h
Operating altitude: 0...10000 ft
Ambient air temperature for operation: 0…40 °C
Ambient air temperature for storage: -15…45 °C
Storage altitude: 0.00…15240.00 m
IP degree of protection: IP20
Relative humidity: 0…95 %
Storage Relative Humidity: 0…95 %
control panel: LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators
Emergency power off: Yes
Free slots: 1
Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge energy rate: 540 J
Noise suppression: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 29.7 cm
Package 1 Width: 48.1 cm
Package 1 Length: 29.7 cm
Package 1 Weight: 13.32 kg
Warranty: 2 years repair or replace
