SCL500RM1UC | APC Smart-UPS Lithium-Ion, Short Depth 500VA, 120V with SmartConnect Port | APC by Schneider Electric

Brand: APCSKU: SCL500RM1UC

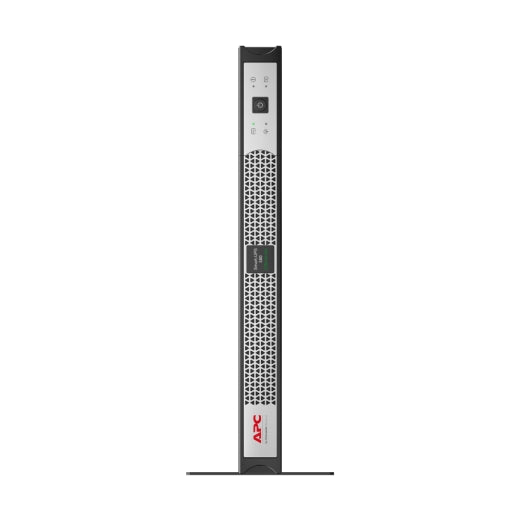

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCL500RM1UC

Jump to: Overview & Specifications Reviews

Overview Details for SCL500RM1UC

APC Smart-UPS Lithium-Ion, Short Depth 500VA, 120V with SmartConnect Port

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA line interactive 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4x NEMA5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SCL UPS has a 5-year warranty on the UPS and Lithium-ion battery.

Specifications

Lead time: Usually in Stock
Run time for load W information_stroke Min-max: 40-400 W: 3min 26s
Max. Capacity Used information_stroke: 100 %
Main Input Voltage: 120 V
Main Output Voltage: 120 V
Rated power in W: 400 W
Rated power in VA: 500 VA
Input Connection Type: NEMA 5-15P
output connection type: 4 NEMA 5-15R
Number of rack unit: 1U
Cable length: 1.83 m
Number of cables: 1
battery type: Li-Ion (Lithium-Ion)
Provided equipment: CD with software
Documentation CD
Installation guide
Rack mounting support rails
USB cable
Software package: SmartConnect software for remote power monitoring feature availability varies by terms of use
Run Time: View Runtime Graph
action_new_window
Efficiency: View Efficiency Graph
action_new_window
Battery graph comments: This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several v
Extended runtime: 0
Battery design life: 8…10 year(s)
Battery power in VAH: 36 VAh runtime
Battery charger power: 10 W rated
product web sub-family: Cloud-enabled monitoring
Redundant: No
Colour: Black with silver front bezel
Height: 4.4 cm
Width: 43.2 cm
Depth: 23.2 cm
Net weight: 4.18 kg
Mounting preference: No preference
Mounting mode: Rack-mounted
USB compatible: Yes
Input protection type: Circuit breaker
Input voltage limits: 92...139 V
Network frequency: 50/60 Hz +/- 3 Hz auto sensing
Harmonic distortion: Less than 5 %
Maximum configurable power in VA: 500 VA
Maximum configurable power in W: 400 W
Transfer time: 6 ms typical : 10 ms maximum
UPS type: Line interactive
Wave type: Sine wave
Output frequency: 50/60 Hz +/- 3 Hz sync to mains
product certifications: cULus
NOM
Equipment protection policy: Lifetime : $150000
Acoustic level: 45 dBA
Operating altitude: 0...10000 ft
Ambient air temperature for operation: 0…40 °C
Ambient air temperature for storage: -15…45 °C
Storage altitude: 0.00…7620.00 m
IP degree of protection: IP20
Relative humidity: 0…95 % non-condensing
Storage Relative Humidity: 0…95 % non-condensing
control panel: LED status display with on line : on battery : replace battery and building wiring fault
Free slots: 0
Communication port support: SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
Surge energy rate: 680 J
Noise suppression: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 16.8 cm
Package 1 Width: 33.7 cm
Package 1 Length: 59 cm
Package 1 Weight: 6 kg
Warranty: 5 year repair or replace

Documents: SCL500RM1UC
