SMX2000LVNC | Smart-UPS X 2000VA Rack/Tower LCD 100-127V with Network Card | APC by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SMX2000LVNC
Overview Details for SMX2000LVNC

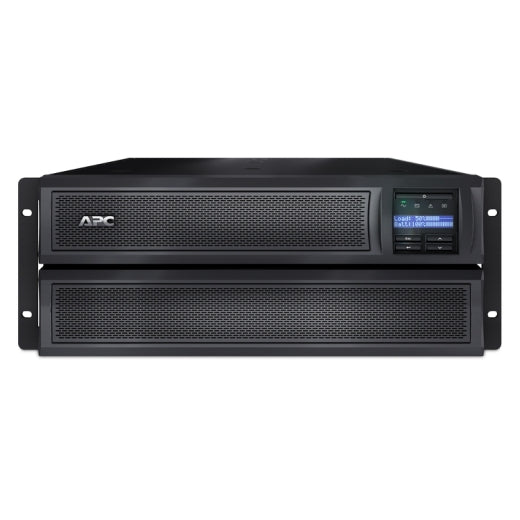

Smart-UPS X 2000VA Rack/Tower LCD 100-127V with Network Card
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2000VA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-20P input, 6x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-20R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. Use the intuitive LCD interface and PowerChute software to configure settings and monitor usage. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.Specifications
- Lead time
- Usually in Stock
- Run time for load
W
information_stroke
Min-max: 180-1800 W - 10min 56s
- Max. Capacity Used
information_stroke - 100 %
- Main Input Voltage
- 120 V
- Other Input Voltage
- 100 V
110 V
127 V - Main Output Voltage
- 120 V
- Other Output Voltage
- 100 V
110 V
127 V - Rated power in W
- 1800 W
- Rated power in VA
- 1920 VA
- Input Connection Type
- NEMA 5-20P
- output connection type
- 6 NEMA 5-15R
3 NEMA 5-20R
1 NEMA L5-20R - Number of rack unit
- 4U
- Cable length
- 2.44 m
- Number of cables
- 1
- battery type
- Lead-acid battery
- Provided equipment
- CD with software
Documentation CD
Installation guide
Network management card
Rack mounting hardware
Rack mounting brackets
Rack mounting support rails
Smart UPS signalling RS-232 cable
USB cable - Run Time
- View Runtime Graph
action_new_window - Efficiency
- View Efficiency Graph
action_new_window - Extended runtime
- 1
- Number of battery filled slots
- 1
- Number of battery free slots
- 0
- Battery recharge time
- 3 h
- Battery life
- 3…5 year(s)
- Replacement battery
- APCRBC143
action_new_window - Battery power in VAH
- 690 VAh runtime
- Battery charger power
- 229 W rated
- Battery option
- SMX120BP 1 2070 VAh
SMX120BP 2 3450 VAh
SMX120BP 3 4830 VAh
SMX120BP 4 6210 VAh
SMX120BP 6 8970 VAh
SMX120BP 8 11730 VAh
SMX120BP 10 14490 VAh - Number of power module filled slots
- 0
- Number of power module free slots
- 0
- product web sub-family
- Network card pre-installed
- Redundant
- No
- Colour
- Black
- Height
- 43.2 cm
- Width
- 17.8 cm
- Depth
- 48.3 cm
- Net weight
- 38.64 kg
- Mounting location
- Front
- Mounting preference
- Lower
- Mounting mode
- Rack-mounted
- Two post mountable
- 1
- USB compatible
- No
- Input voltage limits
- 75...154 V adjustable
70...153 V - Network frequency
- 50/60 Hz +/- 3 Hz auto-sensing
- Harmonic distortion
- Less than 5 %
- Maximum configurable power in VA
- 1920 VA
- Maximum configurable power in W
- 1800 W
- Transfer time
- 4 ms typical : 8 ms maximum
- UPS type
- Line interactive
- Wave type
- Sine wave
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- product certifications
- BSMI
CSA
NOM
TÜV
VCCI class A - Equipment protection policy
- Lifetime : $150000
- Acoustic level
- 55 dBA
- Heat dissipation
- 203 Btu/h
- Operating altitude
- 0...10000 ft
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…45 °C
- Storage altitude
- 0.00…15240.00 m
- Relative humidity
- 0…95 %
- Storage Relative Humidity
- 0…95 %
- control panel
- Multifunction LCD status and control console
- Free slots
- 0
- Preinstalled device
- Network management card 2 with environmental monitoring
- Control panel
- LED status display with on line : on battery : replace battery and overload indicators
- Alarm
- Alarm when on battery : distinctive low battery alarm : configurable delays
- Surge energy rate
- 540 J
- Noise suppression
- Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 33 cm
- Package 1 Width
- 63.3 cm
- Package 1 Length
- 58.6 cm
- Package 1 Weight
- 47.73 kg
- Pallet unit layers
- 2
- Pallet layers
- 4
- Warranty
- 3 years repair or replace (excluding battery) and 2 years for battery
