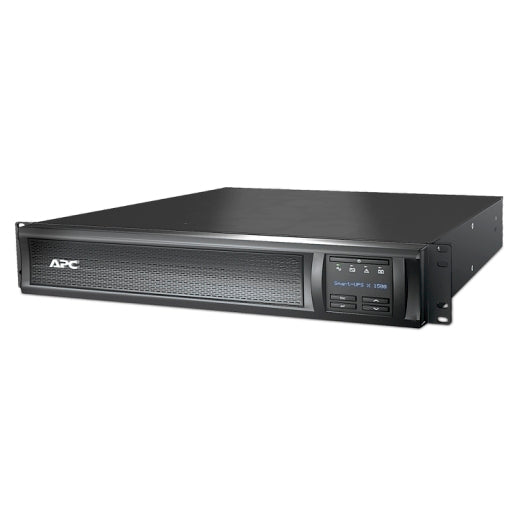

SMX1500RM2UC | APC Smart-UPS X 1500VA Rack/Tower LCD 120V with SmartConnect | APC by Schneider Electric

APC | SMX1500RM2UC
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SMX1500RM2UC

Documents and manuals

APC SMX1500RM2UC Documents

Overview

Details for SMX1500RM2UC

APC Smart-UPS X 1500VA Rack/Tower LCD 120V with SmartConnect

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1500VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. The UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The Smart-UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

Specifications

Lead time
Usually Ships within 2 Weeks
Run time for load
W
information_stroke
Min-max: 135-1350 W
5min 10s
Max. Capacity Used
information_stroke
100 %
Main Input Voltage
120 V
Main Output Voltage
120 V
Rated power in W
1350 W
Rated power in VA
1440 VA
Input Connection Type
NEMA 5-15P
output connection type
8 NEMA 5-15R
Number of rack unit
2U
Cable length
2.44 m
Number of cables
1
battery type
Lead-acid battery
Provided equipment
Installation guide
Rack mounting hardware
Rack mounting support rails
Removable support feet
Smart UPS signalling RS-232 cable
USB cable
Cat 5 Ethernet cable
Software package
SmartConnect software for remote power monitoring feature availability varies by terms of use
Run Time
View Runtime Graph
action_new_window
Efficiency
View Efficiency Graph
action_new_window
battery voltage
48 V
Extended runtime
0
Number of battery filled slots
0
Number of battery free slots
0
Battery recharge time
3 h
Number of battery replacement quantity
1
Battery life
3…5 year(s)
Replacement battery
APCRBC115
action_new_window
Battery power in VAH
288 VAh runtime
Battery charger power
103 W rated
Battery option
SMX48RMBP2U 5 3303 VAh
SMX48RMBP2U 4 2700 VAh
SMX48RMBP2U 3 2100 VAh
SMX48RMBP2U 2 1495 VAh
SMX48RMBP2U 1 888 VAh
Number of power module filled slots
0
Number of power module free slots
0
product web sub-family
Extended run
Redundant
No
Colour
Black
Height
8.9 cm
Width
43.2 cm
Depth
49 cm
Net weight
24.82 kg
Mounting location
Front
Mounting preference
Lower
Mounting mode
Rack-mounted with kit
Two post mountable
0
USB compatible
Yes
Maximum input current
12 A
Max short time withstand current
1000 kA
Switching current capacity
20 A
Input voltage limits
75...154 V adjustable
82...143 V
Network frequency
50/60 Hz +/- 3 Hz auto-sensing
Harmonic distortion
Less than 5 %
Maximum configurable power in VA
1440 VA
Maximum configurable power in W
1350 W
UPS type
Line interactive
Wave type
Sine wave
Full load runtime
00:05:00
Half load runtime
00:15:00
Output frequency
50/60 Hz +/- 3 Hz sync to mains
product certifications
cUL listed
ENERGY STAR V2.0 (USA)
Equipment protection policy
Lifetime : $150000
Acoustic level
40 dBA
Heat dissipation
133 Btu/h
Operating altitude
0...10000 ft
Ambient air temperature for operation
0…40 °C
Ambient air temperature for storage
-15…45 °C
Storage altitude
0.00…15240.00 m
Relative humidity
0…95 %
Storage Relative Humidity
0…95 %
control panel
Multifunction LCD status and control console
Emergency power off
Yes
Free slots
1
Communication port support
SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge energy rate
645 J
Noise suppression
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
24.6 cm
Package 1 Width
62 cm
Package 1 Length
58.9 cm
Package 1 Weight
30 kg
Warranty
3 years repair or replace for hardware. 2 years for battery, plus 1 additional year if customers registers device to SmartConnect
