SMTL1500RM3UC | APC Smart-UPS Li-Ion, Short Depth 1500VA, 120V with SmartConnect | APC by Schneider Electric

Brand: APCSKU: SMTL1500RM3UC

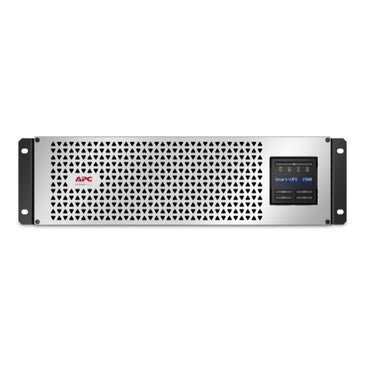

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SMTL1500RM3UC

Jump to: Overview & Specifications Reviews

Overview Details for SMTL1500RM3UC

APC Smart-UPS Li-Ion, Short Depth 1500VA, 120V with SmartConnect

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1500VA line interactive 3U short depth rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6x NEMA 5-15R outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.

Specifications

Presentation: Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Lead time: Usually in Stock
Run time for load W information_stroke Min-max: 68-1350 W: 5min 9s
Max. Capacity Used information_stroke: 100 %
Main Input Voltage: 120 V
Other Input Voltage: 110 V
125 V
Main Output Voltage: 120 V
Other Output Voltage: 110 V
125 V
Rated power in W: 1350 W
Rated power in VA: 1440 VA
Input Connection Type: NEMA 5-15P
output connection type: 6 NEMA 5-15R
Number of rack unit: 3U
Cable length: 2.44 m
battery type: Li-Ion (Lithium-Ion)
Provided equipment: Installation guide
Rack mounting support rails
USB cable
Software package: SmartConnect software for remote power monitoring feature availability varies by terms of use
Run Time: View Runtime Graph
action_new_window
Efficiency: View Efficiency Graph
action_new_window
Battery graph comments: This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several v
Extended runtime: 0
Battery recharge time: 3 h
Battery design life: 8…10 year(s)
Battery power in VAH: 164 VAh runtime
Battery charger power: 154 W rated
product web sub-family: Cloud-enabled monitoring
Redundant: No
Colour: Black with silver front bezel
Height: 13.1 cm
Width: 43.8 cm
Depth: 30.2 cm
Net weight: 19.5 kg
Mounting preference: No preference
Mounting mode: Rack-mounted
USB compatible: Yes
Input protection type: Circuit breaker
Input voltage limits: 75...154 V adjustable
82...144 V
Network frequency: 50/60 Hz +/- 3 Hz auto-sensing
Crest factor: 3 : 1
Graph start point: 68
Harmonic distortion: Less than 5 %
Maximum configurable power in VA: 1440 VA
Maximum configurable power in W: 1350 W
Transfer time: 6 ms typical : 10 ms maximum
UPS type: Line interactive
Wave type: Sine wave
Output frequency: 50/60 Hz +/- 3 Hz sync to mains
product certifications: NOM
Equipment protection policy: Lifetime : $150000
Acoustic level: 45 dBA
Heat dissipation: 135 Btu/h
Operating altitude: 0...10000 ft
Ambient air temperature for operation: 0…40 °C
Ambient air temperature for storage: -15…45 °C
Storage altitude: 0.00…7620.00 m
IP degree of protection: IP20
Relative humidity: 0…95 % non-condensing
Storage Relative Humidity: 0…95 % non-condensing
Alarm: Audible and visible alarms
control panel: Multifunction LCD status and control console
Emergency power off: Yes
Free slots: 1
Communication port support: SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
Alarm: Alarm when on battery : distinctive low battery alarm
Surge energy rate: 680 J
Noise suppression: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 27.9 cm
Package 1 Width: 44.8 cm
Package 1 Length: 58.4 cm
Package 1 Weight: 22.68 kg
Warranty: 5 year repair or replace

Documents: SMTL1500RM3UC
