SMTL1000RM2UC | APC Smart-UPS, Lithium-Ion, Short Depth 1000VA, 120V with SmartConnect Port | APC by Schneider Electric

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SMTL1000RM2UC

Jump to: Documents Overview Specifications Reviews

Documents and manuals

APC SMTL1000RM2UC Documents

Datasheet Installation Instructions

Overview

Details for SMTL1000RM2UC

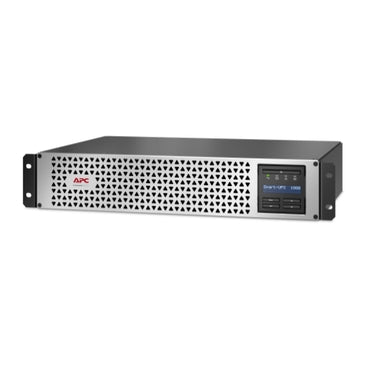

APC Smart-UPS, Lithium-Ion, Short Depth 1000VA, 120V with SmartConnect Port

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1000VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6x NEMA 5-15R outlets. This rackmount UPS is tower convertible with the mounting stabilizing feet (SMTL2USF sold separately). It has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.

Specifications

Lead time: Usually in Stock
Run time for load W information_stroke Min-max: 80-800 W: 7min 47s
Max. Capacity Used information_stroke: 100 %
Main Input Voltage: 120 V
Other Input Voltage: 110 V
125 V
Main Output Voltage: 120 V
Other Output Voltage: 110 V
125 V
Rated power in W: 800 W
Rated power in VA: 1000 VA
Input Connection Type: NEMA 5-15P
output connection type: 6 NEMA 5-15R
Number of rack unit: 2U
Cable length: 2.44 m
battery type: Li-Ion (Lithium-Ion)
Provided equipment: Installation guide
Rack mounting support rails
USB cable
Software package: SmartConnect software for remote power monitoring feature availability varies by terms of use
Run Time: View Runtime Graph
action_new_window
Efficiency: View Efficiency Graph
action_new_window
Battery graph comments: This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several v
Extended runtime: 0
Battery recharge time: 3 h
Battery design life: 8…10 year(s)
Battery power in VAH: 140 VAh runtime
Battery charger power: 79 W rated
product web sub-family: Cloud-enabled monitoring
Redundant: No
Colour: Black with silver front bezel
Height: 8.6 cm
Width: 43.8 cm
Depth: 31.8 cm
Net weight: 16.33 kg
Mounting preference: Lower
Mounting mode: Rack-mounted
USB compatible: Yes
Input protection type: Circuit breaker
Input voltage limits: 75...154 V adjustable
82...144 V
Network frequency: 50/60 Hz +/- 3 Hz auto-sensing
Crest factor: 3 : 1
Harmonic distortion: Less than 5 %
Maximum configurable power in VA: 1000 VA
Maximum configurable power in W: 800 W
Transfer time: 6 ms typical : 10 ms maximum
UPS type: Line interactive
Wave type: Sine wave
Output frequency: 50/60 Hz +/- 3 Hz sync to mains
product certifications: NOM
Equipment protection policy: Lifetime : $150000
Acoustic level: 41 dBA
Heat dissipation: 70 Btu/h
Operating altitude: 0...10000 ft
Ambient air temperature for operation: 0…40 °C
Ambient air temperature for storage: -15…45 °C
Storage altitude: 0.00…7620.00 m
IP degree of protection: IP20
Relative humidity: 0…95 % non-condensing
Storage Relative Humidity: 0…95 % non-condensing
Alarm: Audible and visible alarms
control panel: Multifunction LCD status and control console
Emergency power off: Yes
Free slots: 1
Communication port support: SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
Alarm: Alarm when on battery : distinctive low battery alarm
Surge energy rate: 680 J
Noise suppression: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 22.9 cm
Package 1 Width: 47.2 cm
Package 1 Length: 58.4 cm
Package 1 Weight: 18.6 kg
Warranty: 5 year repair or replace
