Documents: AP7811B
AP7811B | Rack PDU, Metered, 2U, 30A, 208V, (12) C13s & (4) C19 | APC by Schneider Electric

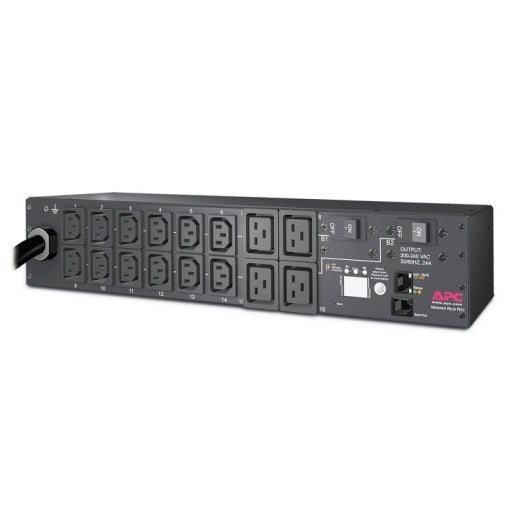

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to AP7811B
Overview Details for AP7811B
Rack PDU, Metered, 2U, 30A, 208V, (12) C13s & (4) C19
Specifications
- Lead time
- Usually in Stock
- Main Input Voltage
- 200 V
208 V
230 V - PDU type
- Metered
- Main Output Voltage
- 208 V
- Input Connection Type
- NEMA L6-30P
- Number of rack unit
- 2U
- Cable length
- 3.66 m
- Number of cables
- 1
- Provided equipment
- Cord retention bracket(s)
Installation guide
Rack mounting brackets
User manual - Height
- 8.8 cm
- Width
- 44.4 cm
- Depth
- 11.2 cm
- Net weight
- 3.36 kg
- Mounting location
- Front
Rear - Mounting preference
- No preference
- Mounting mode
- Rack-mounted
- Mounting position
- Horizontal
- [In] rated current
- 24 A
- Input current limits
- 30 A
- Load capacity
- 4992 VA
- Network frequency
- 50/60 Hz
- Number of power socket outlets
- 12 IEC 60320 C13
4 IEC 60320 C19 - product certifications
- cUL listed
CSA
PSE
UL listed - Standards
- FCC part 15 class A
ICES-003
UL 60950 - Ambient air temperature for operation
- -5…45 °C
- Relative humidity
- 5…95 %
- Operating altitude
- 0...10000 ft
- Ambient air temperature for storage
- -25…65 °C
- Storage Relative Humidity
- 5…95 %
- Storage altitude
- 0.00…15240.00 m
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 14 cm
- Package 1 Width
- 36.8 cm
- Package 1 Length
- 50.8 cm
- Package 1 Weight
- 5.42 kg
- Warranty
- 2 years repair or replace
