SMT3000C | APC Smart-UPS 3000VA LCD 120V with SmartConnect | APC by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SMT3000C
Overview Details for SMT3000C

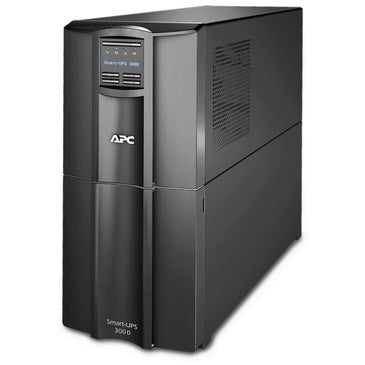

APC Smart-UPS 3000VA LCD 120V with SmartConnect
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 3kVA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA L5-30P input and 12ft/3.7m cord, 6x NEMA 5-15R and 2x NEMA 5-20R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.Specifications
- Lead time
- Usually Ships within 2 Weeks
- Run time for load
W
information_stroke
Min-max: 270-2700 W - 5min 8s
- Max. Capacity Used
information_stroke - 100 %
- Main Input Voltage
- 120 V
- Other Input Voltage
- 110 V
125 V - Main Output Voltage
- 120 V
- Other Output Voltage
- 110 V
125 V - Rated power in W
- 2700 W
- Rated power in VA
- 2880 VA
- Input Connection Type
- NEMA L5-30P
- output connection type
- 8 NEMA 5-15R
2 NEMA 5-20R - Cable length
- 1.83 m
- Number of cables
- 1
- battery type
- Lead-acid battery
- Provided equipment
- Smart UPS signalling RS-232 cable
USB cable - Software package
- SmartConnect software for remote power monitoring feature availability varies by terms of use
- Run Time
- View Runtime Graph
action_new_window - Efficiency
- View Efficiency Graph
action_new_window - Extended runtime
- 0
- Number of battery filled slots
- 0
- Number of battery free slots
- 0
- Battery recharge time
- 3 h
- Number of battery replacement quantity
- 1
- Battery life
- 3…5 year(s)
- Replacement battery
- RBC55
action_new_window - Battery power in VAH
- 816 VAh capacity
816 VAh runtime - Battery charger power
- 271 W rated
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- product web sub-family
- Cloud-enabled monitoring
- Redundant
- No
- Colour
- Black
- Height
- 43.5 cm
- Width
- 19.6 cm
- Depth
- 54.4 cm
- Net weight
- 52.73 kg
- Mounting location
- Front
- Mounting preference
- No preference
- Mounting mode
- Not rack-mountable
- Two post mountable
- 0
- USB compatible
- Yes
- Input voltage limits
- 75...154 V adjustable
82...144 V - Network frequency
- 50/60 Hz +/- 3 Hz auto-sensing
- Harmonic distortion
- Less than 5 %
- Maximum configurable power in VA
- 2880 VA
- Maximum configurable power in W
- 2700 W
- Transfer time
- 6 ms typical : 10 ms maximum
- UPS type
- Line interactive
- Wave type
- Sine wave
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- product certifications
- cULus
ENERGY STAR V2.0 (USA) - Equipment protection policy
- Lifetime : $150000
- Acoustic level
- 45 dBA
- Heat dissipation
- 275 Btu/h
- Operating altitude
- 0...10000 ft
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…45 °C
- Storage altitude
- 0.00…15240.00 m
- Relative humidity
- 0…95 %
- Storage Relative Humidity
- 0…95 %
- control panel
- Multifunction LCD status and control console
- Emergency power off
- Yes
- Free slots
- 1
- Communication port support
- SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
- Alarm
- Alarm when on battery : distinctive low battery alarm : configurable delays
- Surge energy rate
- 530 J
- Noise suppression
- Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 55.9 cm
- Package 1 Width
- 76.2 cm
- Package 1 Length
- 38.1 cm
- Package 1 Weight
- 60.91 kg
- Warranty
- 3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available
