Documents: SMT2200US
SMT2200US | APC Smart-UPS 2200VA LCD 120V TAA | APC by Schneider Electric

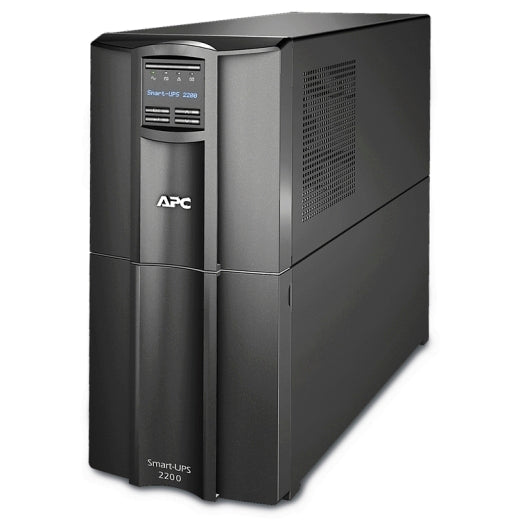

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SMT2200US
Overview Details for SMT2200US
APC Smart-UPS 2200VA LCD 120V TAA
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2200VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-20P input and 12ft/3.7m cord, and 6x NEMA 5-15R and 2x NEMA 5-20R outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.Specifications
- Lead time
- Usually Ships within 2 Weeks
- Run time for load
W
information_stroke
Min-max: 192-1920 W - 7min 32s
- Max. Capacity Used
information_stroke - 100 %
- Main Input Voltage
- 120 V
- Main Output Voltage
- 120 V
- Rated power in W
- 1920 W
- Rated power in VA
- 1920 VA
- Input Connection Type
- NEMA 5-20P
- output connection type
- 8 NEMA 5-15R
2 NEMA 5-20R - Cable length
- 1.83 m
- Number of cables
- 1
- battery type
- Lead-acid battery
- Provided equipment
- CD with software
Documentation CD
Smart UPS signalling RS-232 cable
USB cable - Run Time
- View Runtime Graph
action_new_window - Efficiency
- View Efficiency Graph
action_new_window - Extended runtime
- 0
- Number of battery filled slots
- 0
- Number of battery free slots
- 0
- Battery recharge time
- 3 h
- Number of battery replacement quantity
- 1
- Battery life
- 3…5 year(s)
- Replacement battery
- RBC55
action_new_window - Battery power in VAH
- 702 VAh runtime
- Battery charger power
- 233 W rated
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- product web sub-family
- TAA Compliant
- Redundant
- No
- Colour
- Black
- Height
- 43.2 cm
- Width
- 19.6 cm
- Depth
- 54.4 cm
- Net weight
- 50.91 kg
- Mounting location
- Front
- Mounting preference
- No preference
- Mounting mode
- Not rack-mountable
- Two post mountable
- 0
- USB compatible
- Yes
- Input voltage limits
- 75...154 V adjustable
82...144 V - Network frequency
- 50/60 Hz +/- 3 Hz auto-sensing
- Harmonic distortion
- Less than 5 %
- Maximum configurable power in VA
- 2200 VA
- Maximum configurable power in W
- 1980 W
- Transfer time
- 4 ms typical : 8 ms maximum
- UPS type
- Line interactive
- Wave type
- Sine wave
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- product certifications
- CSA
TAA compliance - Equipment protection policy
- Lifetime : $150000
- Acoustic level
- 45 dBA
- Heat dissipation
- 275 Btu/h
- Operating altitude
- 0...10000 ft
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…45 °C
- Storage altitude
- 0.00…15240.00 m
- Relative humidity
- 0…95 %
- Storage Relative Humidity
- 0…95 %
- control panel
- Multifunction LCD status and control console
- Emergency power off
- Yes
- Free slots
- 1
- Alarm
- Alarm when on battery : distinctive low battery alarm : configurable delays
- Surge energy rate
- 530 J
- Noise suppression
- Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 55.9 cm
- Package 1 Width
- 76.2 cm
- Package 1 Length
- 38.1 cm
- Package 1 Weight
- 60.91 kg
- Warranty
- 3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available
