SMT2200R2X106 | APC Smart-UPS 2200VA LCD RM 2U 120V with L5-20P | APC by Schneider Electric

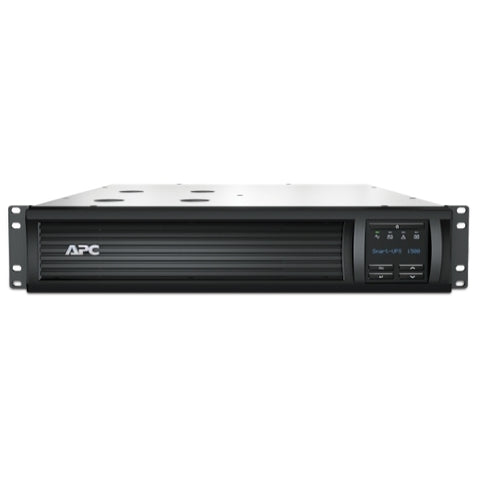

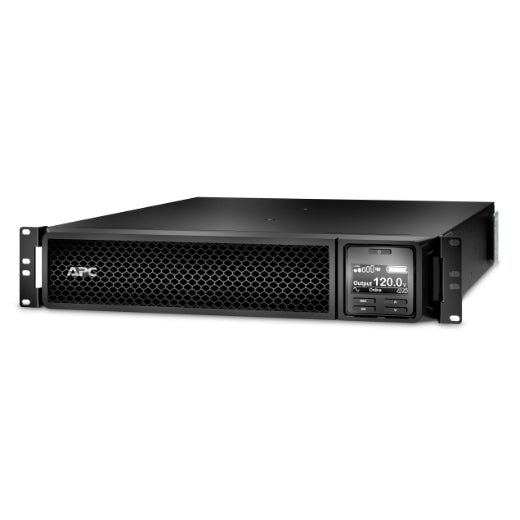

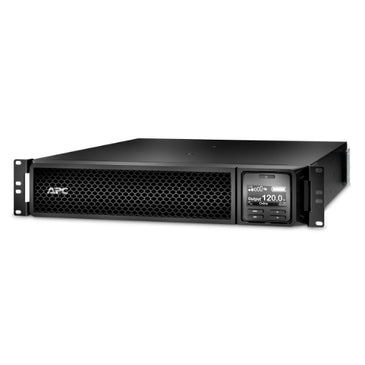

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SMT2200R2X106

Jump to: Documents Overview Specifications Reviews

Documents and manuals

APC SMT2200R2X106 Documents

Datasheet More Info

Overview

Details for SMT2200R2X106

APC Smart-UPS 2200VA LCD RM 2U 120V with L5-20P

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2200VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 10x NEMA 5-15R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

Specifications

Lead time: Usually Ships within 3 Weeks
Run time for load W information_stroke Min-max: 192-1920 W: 5min 23s
Max. Capacity Used information_stroke: 100 %
Main Input Voltage: 120 V
Main Output Voltage: 120 V
Rated power in W: 1920 W
Rated power in VA: 1920 VA
Input Connection Type: NEMA L5-20P
output connection type: 6 NEMA 5-15R
2 NEMA 5-20R
Number of rack unit: 2U
Cable length: 2.44 m
Number of cables: 1
battery type: Lead-acid battery
Provided equipment: CD with software
Documentation CD
Rack mounting brackets
Rack mounting support rails
Smart UPS signalling RS-232 cable
USB cable
Run Time: View Runtime Graph
action_new_window
Efficiency: View Efficiency Graph
action_new_window
Extended runtime: 0
Number of battery filled slots: 0
Number of battery free slots: 0
Battery recharge time: 3 h
Number of battery replacement quantity: 1
Battery life: 3…5 year(s)
Replacement battery: RBC43
action_new_window
Battery power in VAH: 494 VAh runtime
Battery charger power: 164 W rated
Number of power module filled slots: 0
Number of power module free slots: 0
Redundant: No
Colour: Black
Height: 8.6 cm
Width: 48 cm
Depth: 68.3 cm
Net weight: 42.31 kg
Mounting location: Front
Mounting preference: Lower
Mounting mode: Rack-mounted
Two post mountable: 0
USB compatible: Yes
Input voltage limits: 75...154 V adjustable
82...143 V
Network frequency: 50/60 Hz +/- 3 Hz auto-sensing
Harmonic distortion: Less than 5 %
Maximum configurable power in VA: 2200 VA
Maximum configurable power in W: 1980 W
Transfer time: 4 ms typical : 8 ms maximum
UPS type: Line interactive
Wave type: Sine wave
Output frequency: 50/60 Hz +/- 3 Hz sync to mains
product certifications: CSA
Equipment protection policy: Lifetime : $150000
Acoustic level: 55 dBA
Heat dissipation: 215 Btu/h
Operating altitude: 0...10000 ft
Ambient air temperature for operation: 0…40 °C
Ambient air temperature for storage: -15…45 °C
Storage altitude: 0.00…15240.00 m
Relative humidity: 0…95 %
Storage Relative Humidity: 0…95 %
control panel: Multifunction LCD status and control console
Emergency power off: Yes
Free slots: 1
Control panel: LED status display with on line : on battery : replace battery and overload indicators
Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge energy rate: 530 J
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 25.4 cm
Package 1 Width: 98 cm
Package 1 Length: 60 cm
Package 1 Weight: 49.73 kg
Warranty: 3 years repair or replace (excluding battery) and 2 years for battery
