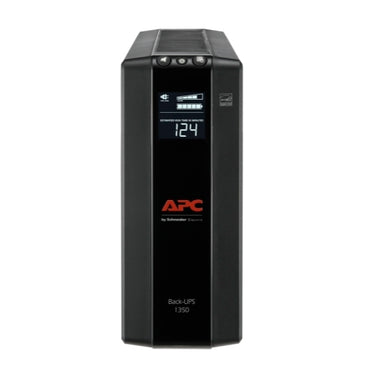

BX1350M | APC Back UPS Pro BX1350M, Compact Tower, 1350VA, AVR, LCD, 120V | APC by Schneider Electric

APC | BX1350M
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BX1350M

Documents and manuals

APC BX1350M Documents

Overview

Details for BX1350M

APC Back UPS Pro BX1350M, Compact Tower, 1350VA, AVR, LCD, 120V

Protect computers, wireless routers, IOT devices, and security systems with the APC Back-UPS Pro Compact 1350VA. APC Back-UPS Pro Compact provide backup battery power during power outages and continuously safeguard devices from fluctuating power conditions and surges. This compact tower UPS is designed for workstations, monitors and network devices. Automatic Voltage Regulation (AVR) instantly corrects high/low voltage fluctuations so connected devices receive consistent power. The APC compact tower UPS is significantly smaller and lighter than other tower models, allowing for convenient use and installation while still providing quality power protection. With 10 outlets, this desktop UPS (uninterruptible power supply) provides seamless battery power to connected electronics. The 810w capacity is ideal for workstations and additional electronics, keeping you connected and productive during power fluctuations. Use the three soft-touch buttons on the front to easily configure settings. Included PowerChute software is available to set up automatic graceful shutdown of a connected PC in the event of an extended power outage. Audible alarms provide notification of changing utility power and UPS conditions. Audible alarms can be muted. The LCD Display provides details concerning power-load of connected devices, battery runtime based on connected devices, the power level of the battery and more. 2 RJ-45 data ports are in the back to protect DSL, modem or fax lines from potentially harmful power surges. 2 coaxial ports are also in the back of the UPS for additional protection. This computer backup offers lifetime guaranteed surge protection with a $250,000 equipment protection policy. Package Contains UPS, USB cable and user manual

Specifications

Lead time
Usually in Stock
Run time for load
W
information_stroke
Min-max: 81-810 W
2min 29s
Max. Capacity Used
information_stroke
100 %
Main Input Voltage
120 V
Main Output Voltage
120 V
Rated power in W
810 W
Rated power in VA
1350 VA
Product or component type
Uninterruptible power supply (UPS)
Input Connection Type
NEMA
output connection type
5 NEMA 5-15R
5 NEMA 5-15R surge
Cable length
1.83 m
Number of cables
1
battery type
Lead-acid battery
Run Time
View Runtime Graph
action_new_window
Efficiency
View Efficiency Graph
action_new_window
Number of battery filled slots
0
Number of battery free slots
0
Battery recharge time
16 h
Number of battery replacement quantity
1
Battery charger power
9 W rated
Battery power in VAH
150 VAh capacity
150 VAh runtime
Extended runtime
0
Replacement battery
APCRBC123
action_new_window
Provided equipment
user manual
USB cable
Number of power module free slots
0
Number of power module filled slots
0
Redundant
No
Height
25 cm
Width
10 cm
Depth
38.2 cm
Net weight
10.2 kg
Mounting preference
No preference
Mounting mode
Not rack-mountable
Two post mountable
0
USB compatible
No
Network frequency
60 Hz +/- 3 Hz
Input voltage limits
88...139 V
Maximum input current
12 A
Switching current capacity
15 A
Maximum configurable power in W
810 W
Output frequency
60 Hz sync to mains
UPS type
Line interactive
Wave type
Stepped approximation to a sinewave
Maximum configurable power in VA
1350 VA
Transfer time
8 ms typical : 10 ms maximum
product certifications
California Energy Commission (CEC)
ENERGY STAR V2.0 (USA)
TUV C-US certified
Equipment protection policy
Lifetime : $250000
Ambient air temperature for operation
0…40 °C
Relative humidity
0…95 %
Operating altitude
0...10000 ft
Ambient air temperature for storage
-15…45 °C
Storage Relative Humidity
0…95 %
Storage altitude
0.00…15240.00 m
Acoustic level
45 dBA
Heat dissipation
67.6 Btu/h
control panel
Multifunction LCD status and control console
Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge energy rate
789 J
Noise suppression
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Data line protection
Coaxial cable for CATV/SATV/modem/audio-video
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
34.8 cm
Package 1 Width
49.1 cm
Package 1 Length
22.7 cm
Package 1 Weight
11.9 kg
SCC14
10731304331770
Warranty
3 years repair or replace
