AP8870 | Rack PDU 2G, Metered, ZeroU, 30A, 00-120/200-240V, (16) 5-20R (12) C13 (2) C19 | APC by Schneider Electric

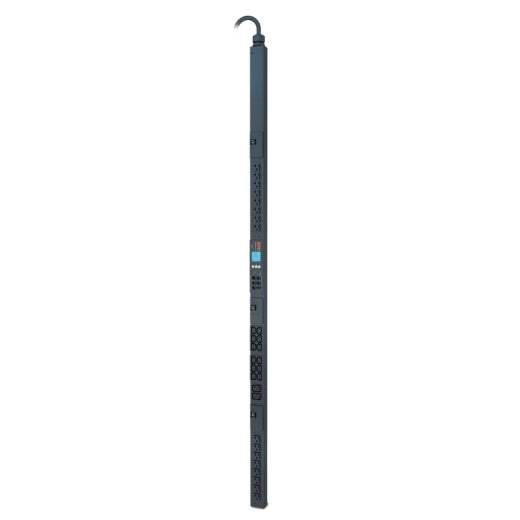

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to AP8870

Jump to: Documents Overview Specifications Reviews

Documents and manuals

APC AP8870 Documents

Datasheet More Info

Overview

Details for AP8870

Rack PDU 2G, Metered, ZeroU, 30A, 00-120/200-240V, (16) 5-20R (12) C13 (2) C19

Specifications

Presentation: APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Lead time: Usually in Stock
Main Input Voltage: 120 V
208 V
PDU type: Metered
Main Output Voltage: 120 V
Other Output Voltage: 240 V
Input Connection Type: NEMA L14-30P
Number of rack unit: 0U
Cable length: 3.00 m
Number of cables: 1
Provided equipment: Installation guide
Rack mounting brackets
Serial configuration cable
Safety guide
Colour: Black
Height: 179.1 cm
Width: 5.5 cm
Depth: 4.4 cm
Net weight: 6.38 kg
Mounting location: Side
Mounting preference: No preference
Mounting mode: Not rack-mountable
Mounting position: Vertical
[In] rated current: 24 A
Input current limits: 30 A
Load capacity: 4992 VA
Network frequency: 50/60 Hz
Number of power socket outlets: 16 NEMA 5-20R
12 IEC 60320 C13
2 IEC 60320 C19
product certifications: cUL listed
UL listed
Standards: FCC part 15 class A
ICES-003
UL 60950-1
Ambient air temperature for operation: -5…60 °C
Relative humidity: 5…95 %
Operating altitude: 0...10000 ft
Ambient air temperature for storage: -25…65 °C
Storage Relative Humidity: 5…95 %
Storage altitude: 0.00…15240.00 m
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 200.6 cm
Package 1 Width: 10.83 cm
Package 1 Length: 16.47 cm
Package 1 Weight: 7.19 kg
Warranty: 2 years repair or replace
