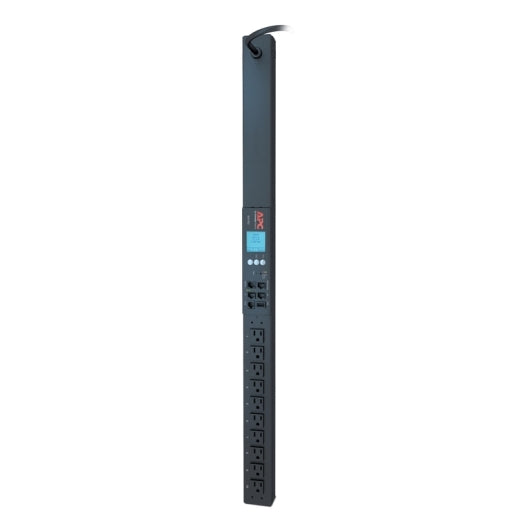

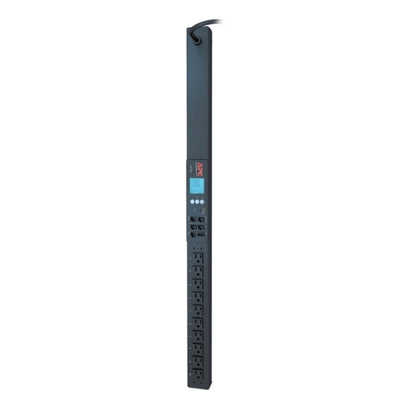

AP8831 | Rack PDU 2G, Metered, ZeroU, 15A, 100-120V, (10) 5-15 | APC by Schneider Electric

Brand: APCSKU: AP8831

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to AP8831

Jump to: Overview & Specifications Reviews

Overview Details for AP8831

Rack PDU 2G, Metered, ZeroU, 15A, 100-120V, (10) 5-15

Rack PDU 2G, Metered, ZeroU, 15A, 100-120V, (10) 5-15

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Includes: Installation guide, Rack Mounting brackets, Safety guide, Serial configuration cable

Specifications

Presentation: APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Lead time: Usually in Stock
Main Input Voltage: 100 V
120 V
PDU type: Metered
Main Output Voltage: 100 V
120 V
Input Connection Type: NEMA 5-15P
Number of rack unit: 0U
Cable length: 3.00 m
Number of cables: 1
Provided equipment: Installation guide
Rack mounting brackets
Serial configuration cable
Safety guide
Colour: Black
Height: 90.2 cm
Width: 5.5 cm
Depth: 4.4 cm
Net weight: 4.08 kg
Mounting location: Side
Mounting preference: No preference
Mounting mode: Rack-mounted
Mounting position: Vertical
[In] rated current: 12 A
Permissible voltage: 100…120 V
Input current limits: 15 A
Load capacity: 1440 VA
Network frequency: 50/60 Hz
Number of power socket outlets: 10 NEMA 5-15R
product certifications: cUL listed
PSE
UL listed
Standards: FCC part 15 class A
ICES-003
UL 60950-1
Ambient air temperature for operation: -5…60 °C
Relative humidity: 5…95 %
Operating altitude: 0...10000 ft
Ambient air temperature for storage: -25…65 °C
Storage Relative Humidity: 5…95 %
Storage altitude: 0.00…15240.00 m
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 113.1 cm
Package 1 Width: 10.83 cm
Package 1 Length: 16 cm
Package 1 Weight: 4.94 kg
Warranty: 2 years repair or replace

Documents: AP8831
