Documents: AP7900B

Datasheet More Info

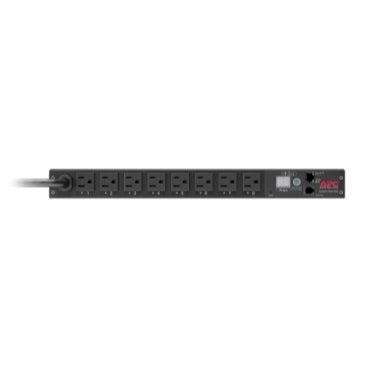

AP7900B | Rack PDU, Switched, 1U, 15A, 100/120V, (8)5-15 | APC by Schneider Electric

Brand: APCSKU: AP7900B

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to AP7900B

Jump to: Overview & Specifications Reviews

Overview Details for AP7900B

Rack PDU, Switched, 1U, 15A, 100/120V, (8)5-15

Rack PDU, Switched, 1U, 15A, 100/120V, (8)5-15

Switched Rack Power Distribution Units (PDUs) provide advanced load monitoring combined with remote on/off switching control of individual outlets for power cycling, delayed power sequencing, and outlet use management.

Includes: Cord retention bracket(s), Horizontal mounting brackets, Installation Guide, User Manual This APC Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)5-15. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.

Specifications

Presentation: This APC Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency;manageability and functionality. The output and input connections are (8)5-15. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.
Lead time: Usually in Stock
Main Input Voltage: 100 V;120 V
Main Output Voltage: 120 V
Input Connection Type: NEMA 5-15P
Number of rack unit: 1U
Cable length: 12 ft (3.66 m)
number of cables: 1
Provided Equipment: Cord retention bracket(s);Horizontal mounting brackets;User Manual;Installation guide
Color: Black
Height: 1.73 in (4.4 cm)
Width: 17.52 in (44.5 cm)
Depth: 4.25 in (10.8 cm)
Net Weight: 5.00 lb(US) (2.27 kg)
Mounting Location: Front;Rear
mounting preference: No preference
Mounting Mode: Rack-mounted
Line Rated Current: 12 A
Acceptable Input Voltage: 100…120 V
input current limits: 15 A
Load Capacity: 1440 VA
Input Frequency: 50/60 Hz
number of power socket outlets: 8 NEMA 5-15R
Product Certifications: cUL Listed;UL Listed
Standards: FCC Part 15 class A;ICES-003
Ambient air temperature for operation: 32…113 °F (0…45 °C)
Relative Humidity: 0…95 %
Operating altitude: 0...10000 ft
Ambient Air Temperature for Storage: -13…149 °F (-25…65 °C)
Storage Relative Humidity: 0…95 %
Storage altitude: 0…50000 ft (0.00…15240.00 m)
GTIN: 731304331568
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.76 in (7 cm)
Package 1 Width: 13.50 in (34.3 cm)
Package 1 Length: 18.50 in (47 cm)
Package 1 Weight: 7.61 lb(US) (3.45 kg)
Warranty: 2 years repair or replace
