Documents: AP7800B

Datasheet More Info

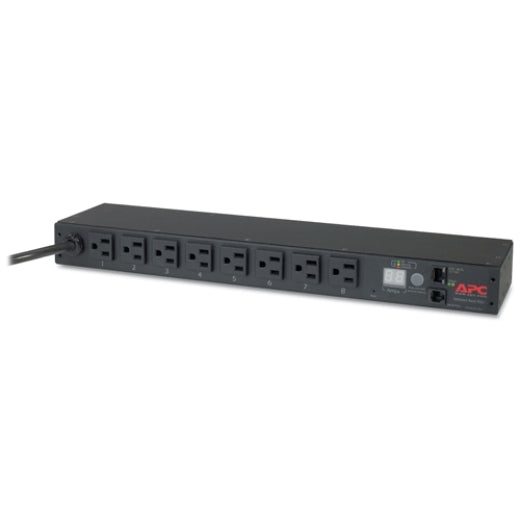

AP7800B | Rack PDU, Metered, 1U, 15A, 100/120V, (8) 5-15 | APC by Schneider Electric

Brand: APCSKU: AP7800B

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to AP7800B

Jump to: Overview & Specifications Reviews

Overview Details for AP7800B

Rack PDU, Metered, 1U, 15A, 100/120V, (8) 5-15

Rack PDU, Metered, 1U, 15A, 100/120V, (8) 5-15

Metered rack Power Distribution Units (PDUs) provide real-time remote monitoring of connected loads. User-defined alarms warn of potential circuit overloads before critical IT failures occur.

Includes: Cord Retention Bracket(s), Installation Guide, Rack Mounting Brackets, User Manual

Specifications

Lead time: Usually in Stock
Main Input Voltage: 100 V
120 V
PDU type: Metered
Main Output Voltage: 120 V
Input Connection Type: NEMA 5-15P
Number of rack unit: 1U
Cable length: 3.66 m
Number of cables: 1
Provided equipment: Cord retention bracket(s)
Installation guide
Rack mounting brackets
User manual
Height: 4.4 cm
Width: 44.4 cm
Depth: 10.2 cm
Net weight: 1.73 kg
Mounting location: Front
Rear
Mounting preference: No preference
Mounting mode: Rack-mounted
Mounting position: Horizontal
[In] rated current: 12 A
Input current limits: 15 A
Load capacity: 1440 VA
Network frequency: 50/60 Hz
Number of power socket outlets: 8 NEMA 5-15R
product certifications: cUL listed
CSA
METI Denan
UL listed
VCCI
Standards: FCC part 15 class A
ICES-003
UL 60950
Ambient air temperature for operation: -5…45 °C
Relative humidity: 5…95 %
Operating altitude: 0...10000 ft
Ambient air temperature for storage: -25…65 °C
Storage Relative Humidity: 5…95 %
Storage altitude: 0.00…15240.00 m
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 6.4 cm
Package 1 Width: 33.7 cm
Package 1 Length: 47 cm
Package 1 Weight: 2.91 kg
Warranty: 2 years repair or replace
