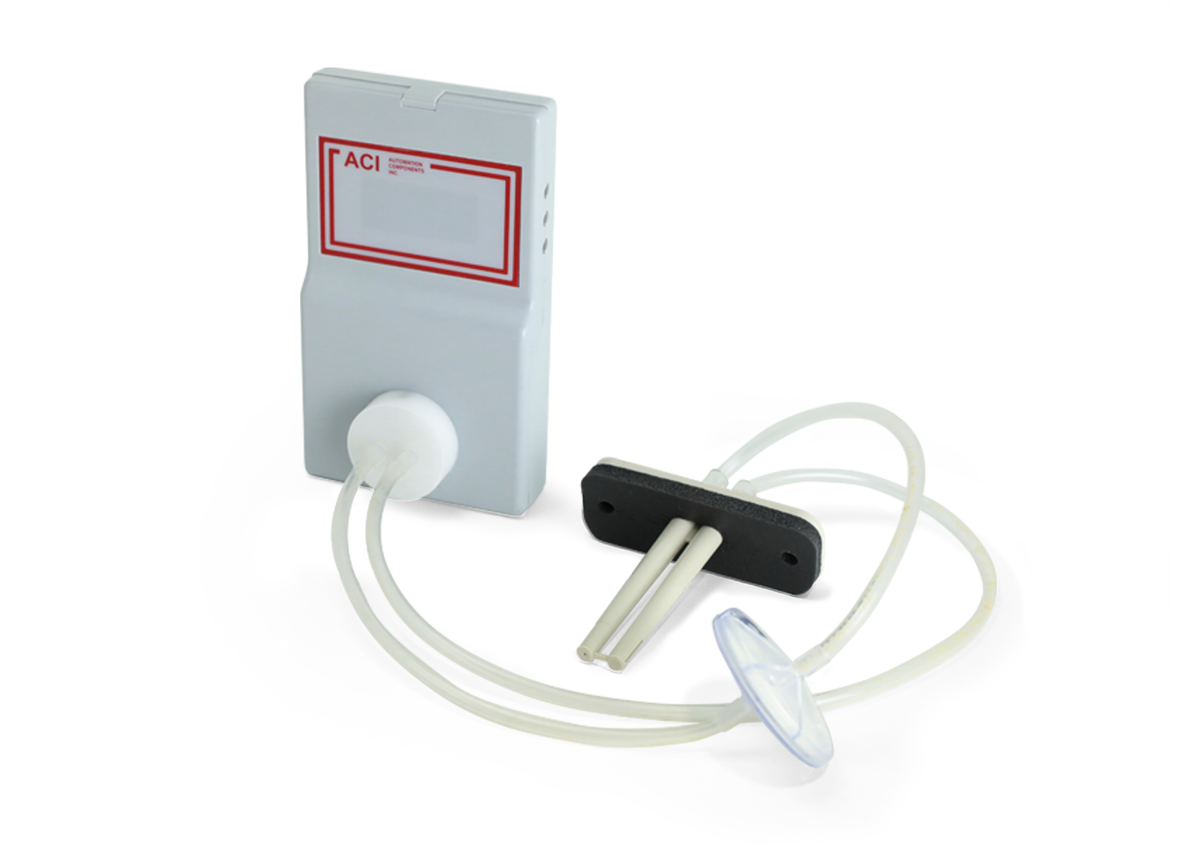

NO2-D-RB-D | NO2 DUCT W/LCD, RELAY, BUZZER | ACI
Nitrogen Dioxide Sensor, 0-6 PPM Default, (10 PPM Max), Duct Mount, 4-20mA, 2-10VDC Output, LCD, Relay & Buzzer
Documents and manuals
ACI NO2-D-RB-D Documents
Overview
Details for NO2-D-RB-D
NO2 DUCT W/LCD, RELAY, BUZZER
The NO2 transmitter monitors nitrogen dioxide (NO2) and is designed for the continuous monitoring of vehicle exhaust in non-hazardous areas. A wide spectrum, long life electrochemical sensor measures the amount of CO or NO2 in the environment. Both the Room and Duct transmitters are offered in a standard NEMA 1 plastic enclosure. An optional NEMA 4X watertight and dust proof enclosure is available with the room transmitter. Other options include an LCD display with (2) SPDT Form 1C relays and a buzzer. The NO2 transmitter is covered by ACI's Two (2) Year Limited Warranty.
ACI nitrogen dioxide sensors or transmitters are designed for HVAC, Building Automation Systems, or OSHA standards. Typical applications include: parking garages, arenas, kitchens, laundry rooms, warehouses, loading docks, service garages, school bus parking areas.
- Reliable sensor performance (Electrochemical)
- Push button programming
- Relay option
Specifications
| Item Number | NO2-D-RB-D |
| Brand | ACI |
